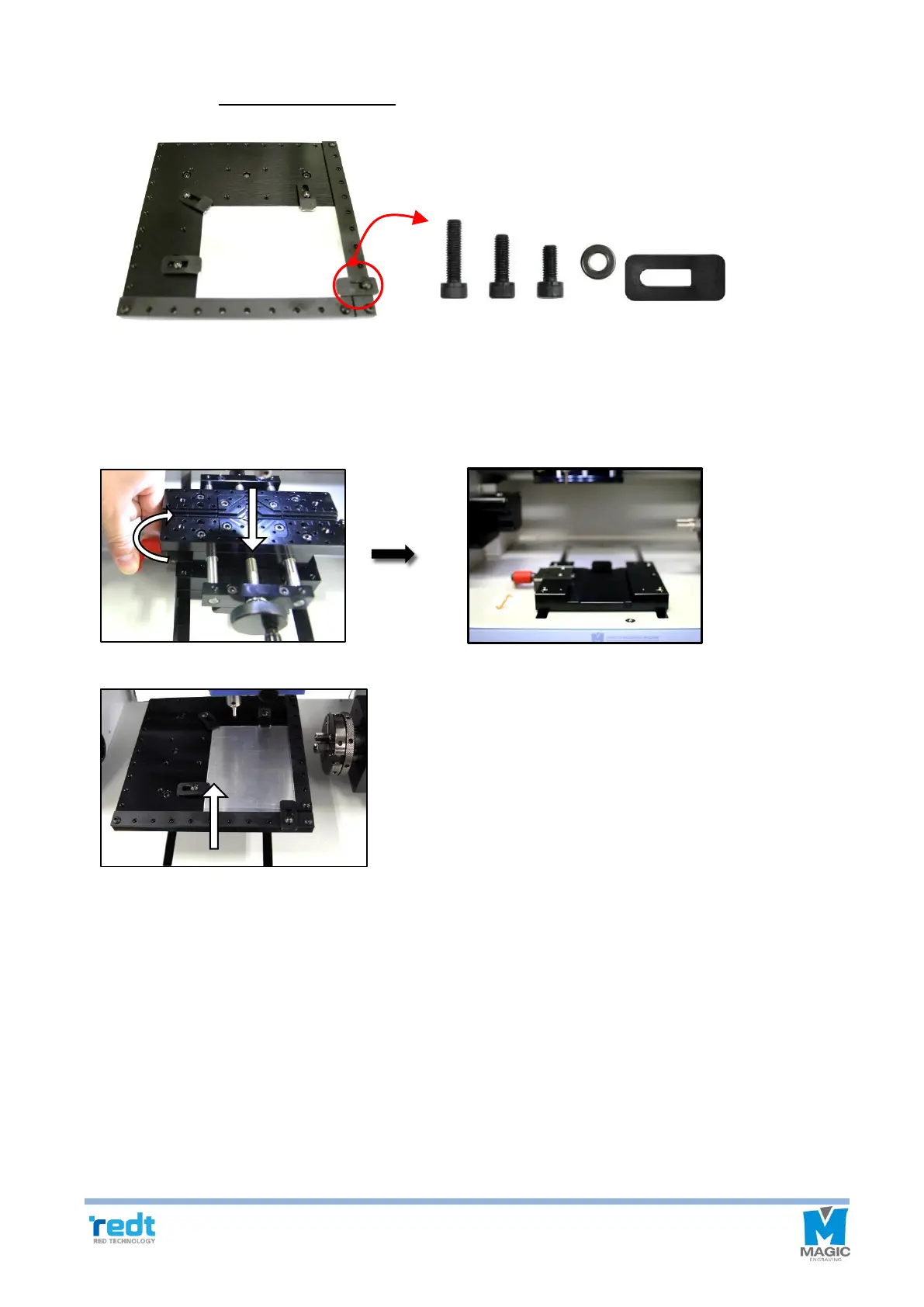

◈ Flat Clamp (Separately purchased)
※ Is secured on the base table by using 4 bolts at each corner of the clamp.
1. Turn the clamp knob on the left side of the clamp and pull the clamp and spacer block to take it out.
2. Insert the flat clamp, and tighten the clamp by turn the clamp knob.
