8.6 S-Record Properties Window
This dialog is invoked by clicking the Properties toolbar button or from the Right-Click, Properties Menu
when the file is open and selected in the Hex Editor window.
8.6.1
Block Usage Tab
This tab shows the starting, finishing address and sizes of the data blocks contained in the active file tab. If
the file is open in the editor window, double clicking on a range highlights the selected data.

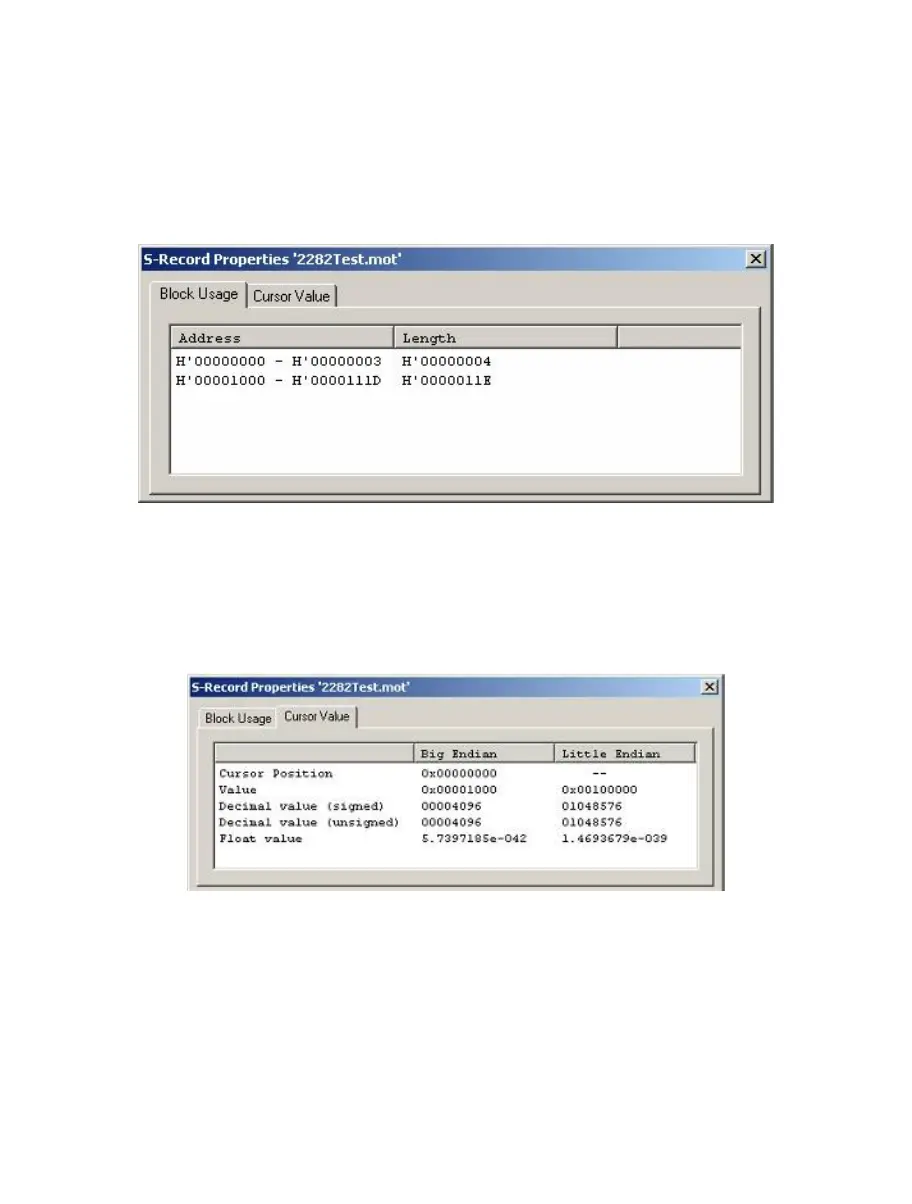

Figure 8-13 S Record Properties – Block Usage
8.6.2
Cursor Value
This tab shows various representations of the data at the cursor position. The display depends upon whether
the display unit is set to Byte, Word or DWord. Note that it assumes data alignment of the display unit size
so for example, the same value is displayed wherever the cursor is positioned within a DWord.
Figure 8-14 S Record Properties – Cursor Value
