15.3 Locking Dialog
The Locking Dialog, accessible from either the toolbar or the 'Device->Block Locking...' menu, controls
how FDT behaves with those devices that support protected erase blocks. The dialog, with example device
is shown below:

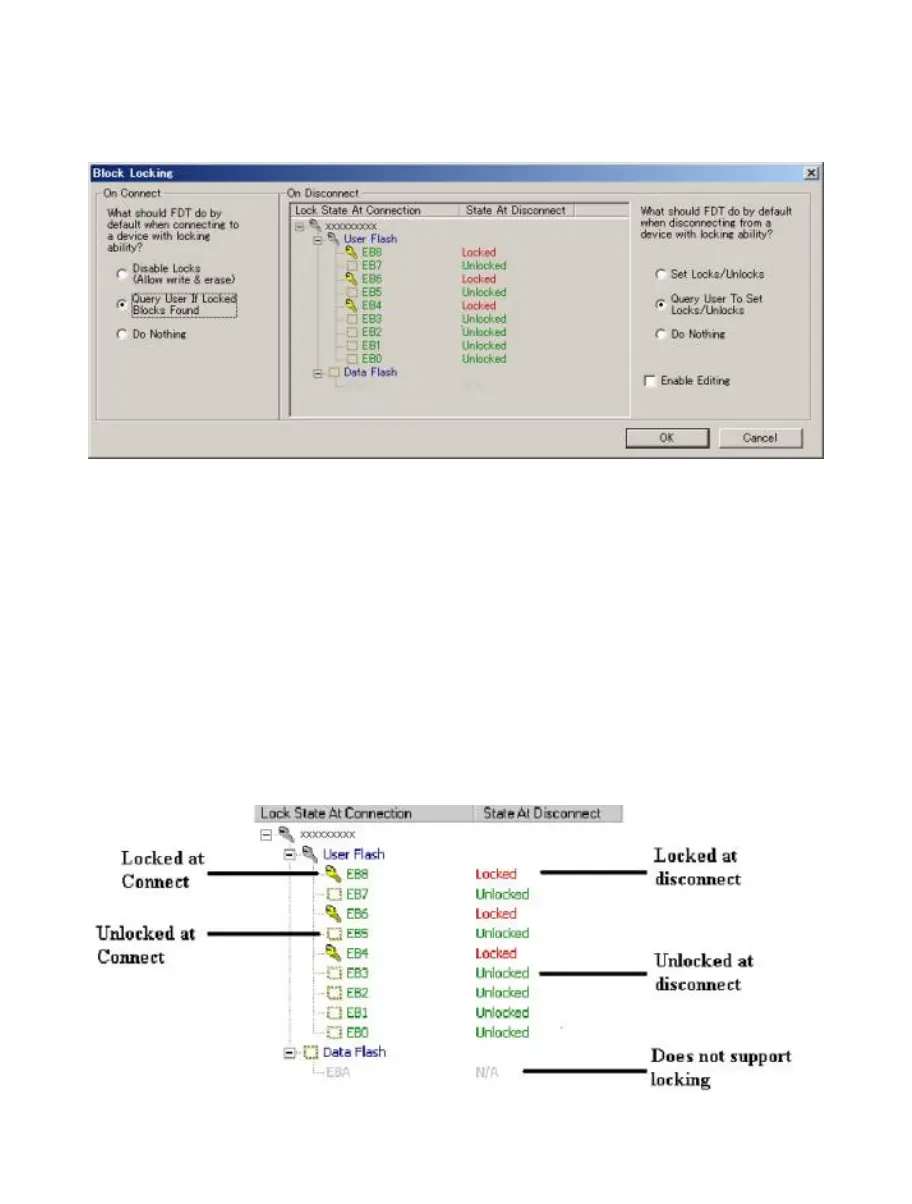

Figure 15-4 Block Lock Configuration Dialog
1. On Connect
The left hand side of the dialog controls how FDT behaves as it connects to a device with locking ability.
See more on this in the Connection section.
2. On Disconnect
The right hand side of the dialog controls how FDT behaves as it disconnects from a device with locking
ability. See more on this in the Disconnection section.
3. Lock State Tree View
The central part of the dialog shows the lock status of the device as a tree view, similar to the Erase Blocks
Dialog. The view highlights several important pieces of information:
Figure 15-5 Lock State Tree View Settings
