8.5 Configure Flash Project (Flash Properties)
The ‘Configure Flash Project’ dialog box can be invoked from the ‘Configure Flash Project’ toolbar button
or Device Menu item. It defaults to being docked at the bottom of the FDT window but can be dragged to
dock in other locations or to float. To prevent unintentional docking, hold the Ctrl key whilst dragging.
8.5.1
KernelTab
This shows the kernel path, frequency, protocol, clock multipliers, and clock mode. Double clicking on
these entries when disconnected will invoke the Project Wizard at the appropriate screen.

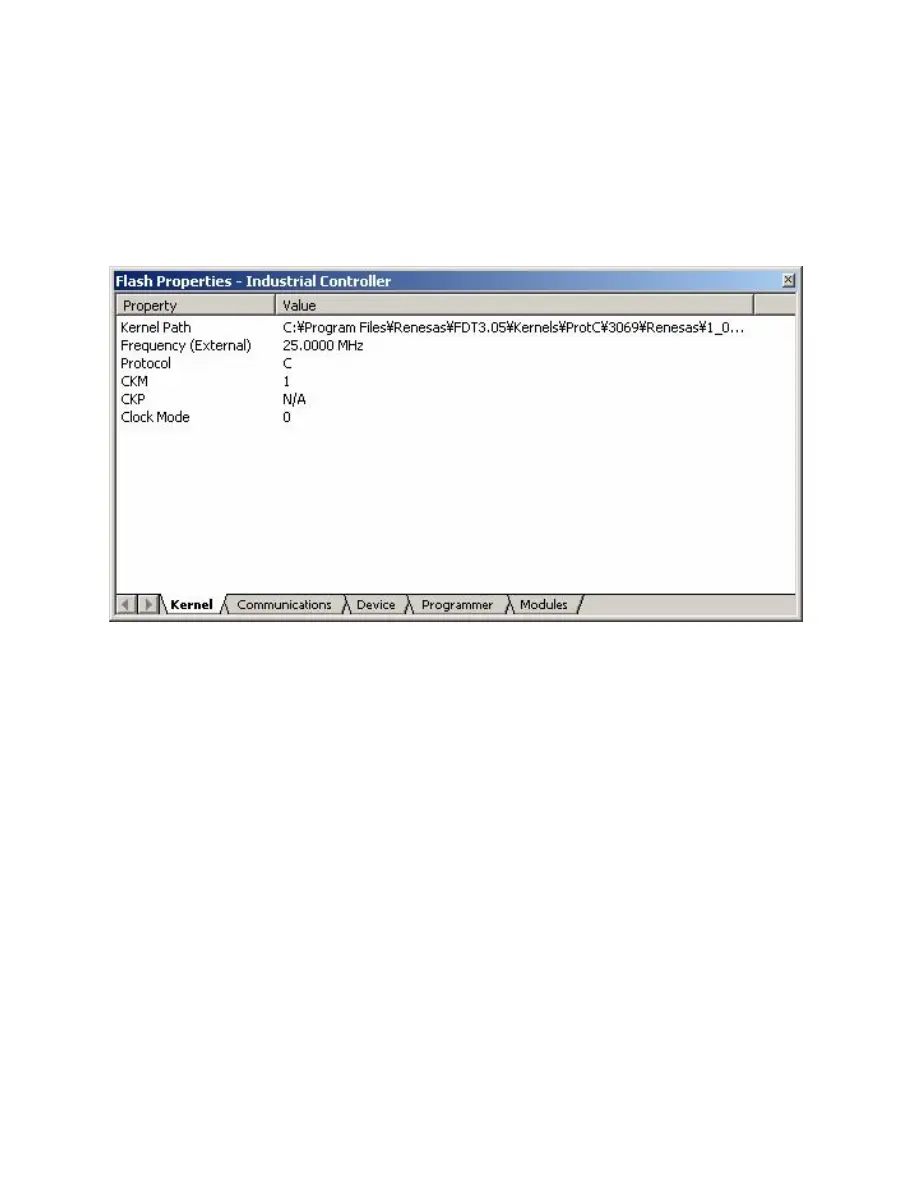

Figure 8-8 Kernel Properties
Kernel Path
This shows the kernel path.
Frequency
This shows the input clock and whether that clock is external or internal to the target
Protocol
This shows the type of communication protocols. See also section 3.2.4
Protocol B: 0.35-μm devices
Protocol C: 0.18-μm devices
Protocol D: R8C, M16C, M16C/Tiny, M32C or 740 devices
CKM
This shows the multiplier of the system clock (master clock) for the input clock.
