32
Note Setting the mode pins using the FDM requires caution. Please confirm the pin settings with the
hardware manual even if a default setting is available. Note that in some devices, changing the
mode pin setting changes the maximum supply voltage.
When the ‘Select USB Device’ Dialog is displayed you must select which FDM unit is to be
used to set up the connection.

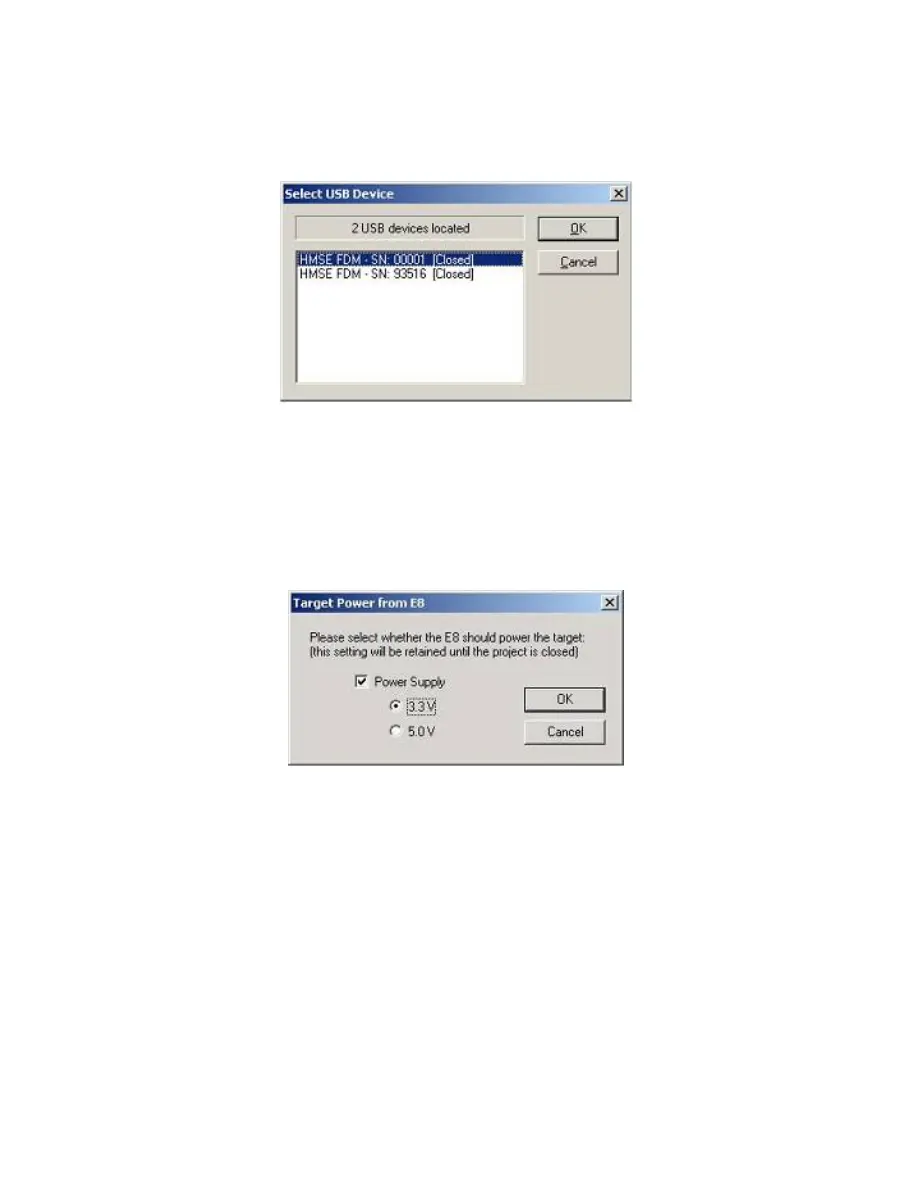

Figure 3-17 Select USB Device
3.5.5
Generic Boot - E8Direct Pin Settings [E8Direct connection only]
If E8Direct is selected the following two screens will be shown. The first allows optional power to be
supplied to the target board via the E8 (see also section 3.6.1)
Figure 3-18 E8 Target Power Supply Selection
WARNING: Damage to the target device may occur if the incorrect voltage setting is chosen!
This will be followed by the mode pin settings dialog, required to place the device into Boot Mode. Click
‘OK’ to continue.
