27
3.4.8
Reset Pin Settings
[Only if the FDM or E8Direct is selected] Select the ‘Operating Mode’ and ‘Clock Mode’ and if ‘User
Defined’, set the Reset pin settings. Set the ‘Reset Outputs’ and the ‘Reset Setting’ for the mode required
immediately after disconnection. Click the ‘Finish’ button. “*Mode Outputs” sets which pins are driven by
the FDM, “*Mode Setting” sets whether output pins are driven High (checked) or Low (Unchecked).
Notes: Setting the mode pins using the FDM or E8Direct requires caution. Please confirm the pin settings
with the hardware manual even if a default setting is available. Note that in some devices, changing
the mode pin setting changes the maximum supply voltage.

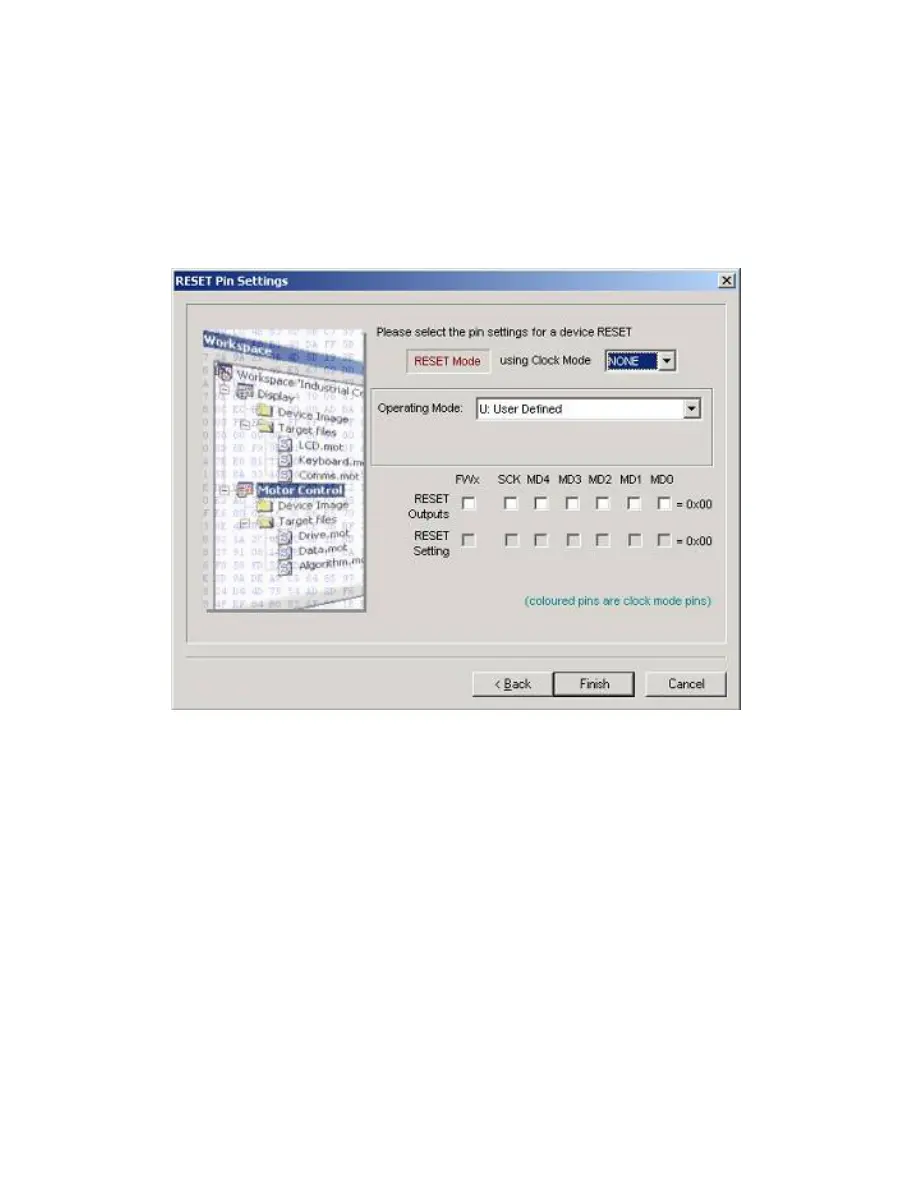

Figure 3-10 FDMRESET Pin Settings
