25
3.4.6
Programming Options
Select the protection level for programming the FLASH ROM and the messaging level, then click the
‘Finish’ button, or if the FDM\E8Direct was selected, click ‘Next’ to continue.

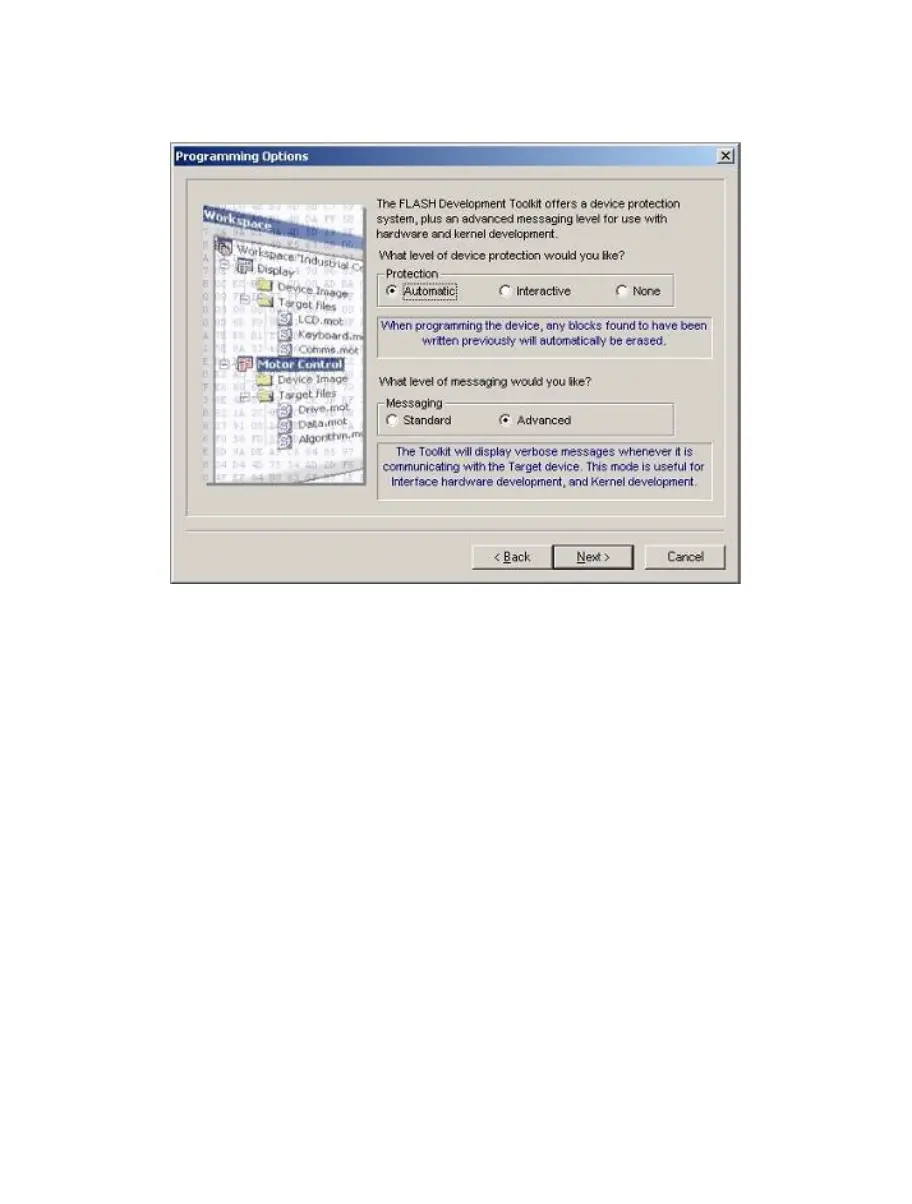

Figure 3-7 Programming Options
3.4.7
FDM\E8Direct Pin Settings
[Only if the FDM or E8Direct is selected] Select the ‘Operating Mode’ and ‘Clock Mode’ and if ‘User
Defined’, set the pin settings. [For ‘Boot Mode’ projects set the ‘Boot Mode Outputs’ and the ‘Boot Mode
Setting’ for the required mode, for ‘User Mode’ projects set the ‘User Mode Outputs’, ‘User Mode Setting’
and the ‘User Program Mode Setting’ for the required mode.] Click the ‘Next’ button to continue. “*Mode
Outputs” sets which pins are driven, “*Mode Setting” sets whether output pins are driven High (checked)
or Low (Unchecked).
Notes: Setting the mode pins using the FDM or E8Direct requires caution. Please confirm the pin settings
with the hardware manual even if a default setting is available. Should you be using the E8Direct
then a message-box will also appear requesting confirmation of this warning. Note that in some
devices, changing the mode pin setting changes the maximum supply voltage.
