If this is checked, the default Baud Rate will be used. (This option should be set only when the
RenesasEvaluation Board or Evaluation Development Kit is used.)
FDM\E8Direct Pins
This section displays the direction and state of the controlled mode pins for the Connect and Disconnect
with Reset operations.
8.5.3
Device Tab
This shows the device information. It also allows the user to select BOOT Mode or USER Program Mode
and the ‘Direct Connection’interface. In addition, it can specify whether or not the kernel is in the target
device.

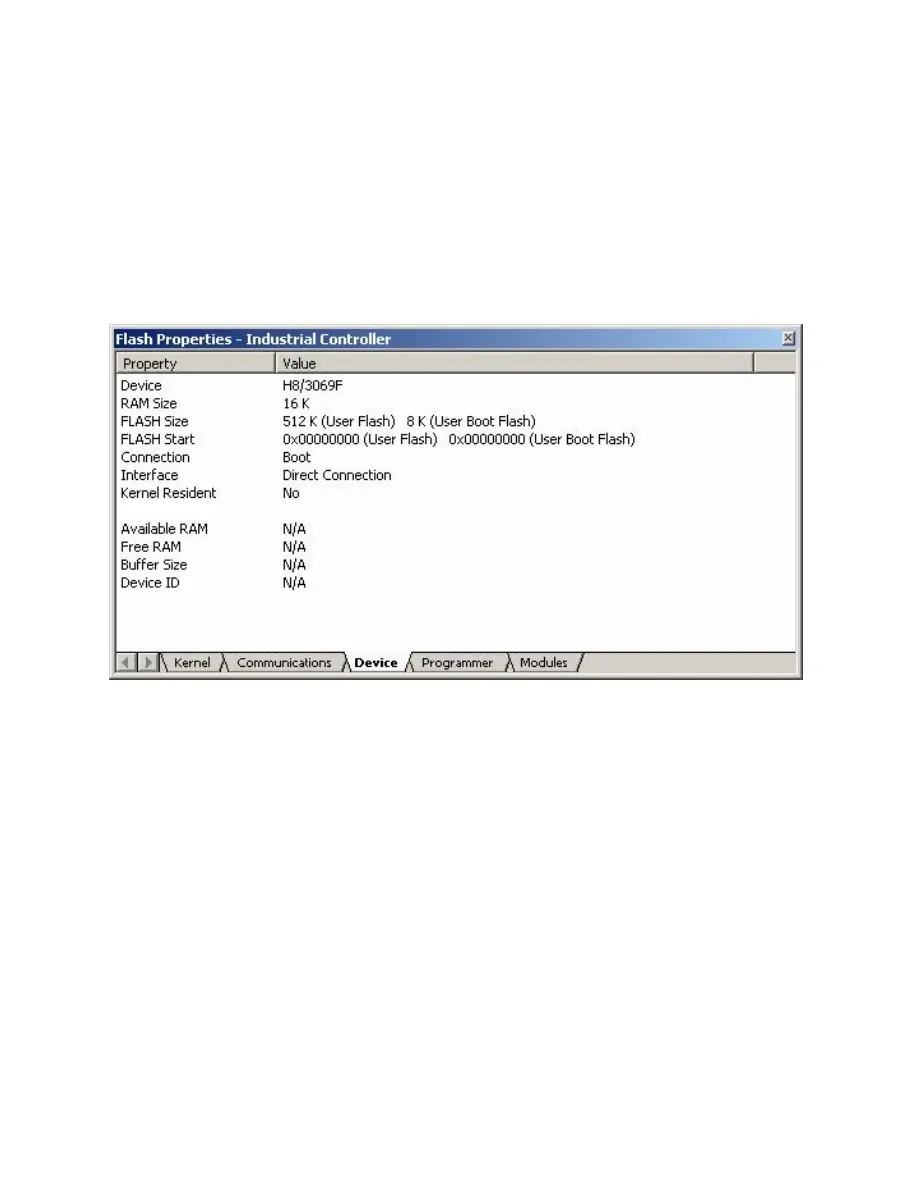

Figure 8-10 Device Properties
Device
Displays the name of the active device. Double clicking invokes the Project Wizard to allow editing of this
item.
RAM Size, FLASH Size, Flash Start
These are for display only and are not editable.
Connection
Boot Mode: This connection type specifies that the on-board programming BOOT mode sequence is to be
initiated. This will cause the entire FLASH memory to be erased and a kernel loaded.
USER (Program) Mode: This connection type specifies that the on-board programming USER Program
mode sequence is to be initiated by a previously loaded user program that is used to reprogram the FLASH
memory.
