84
CKP
This shows the multiplier of the peripheral clock for the input clock.
Clock Mode
This shows the clock mode.
8.5.2
Communications Tab
This shows the default and current baud rates and the current port. It also allows the user to change the Port
and Baud Rate when disconnected.

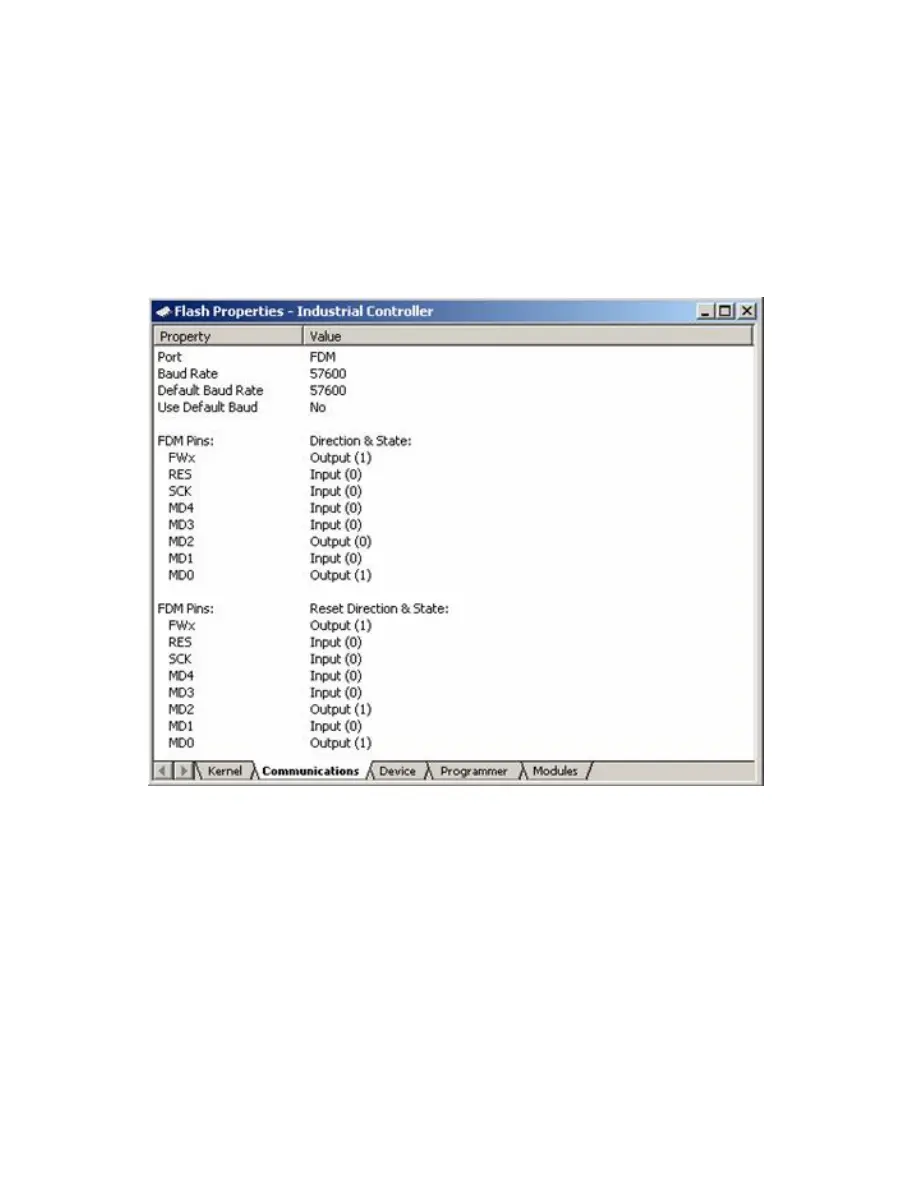

Figure 8-9 Communications Properties
Port
This drop-down list provides the user with a list of supported COM ports available for connection to the
device. This list includes the USB port options.
Baud Rate
Display the currently selected Baud Rate. Double clicking invokes the Project Wizard to allow editing of
this item.
Default Baud Rate
Display the Default Baud Rate.
Use default baud
