116
The FDM used a H8S/2148AF with an 18.432MHz crystal, but the E8 uses an H8S/2215UF with a 16MHz
crystal.

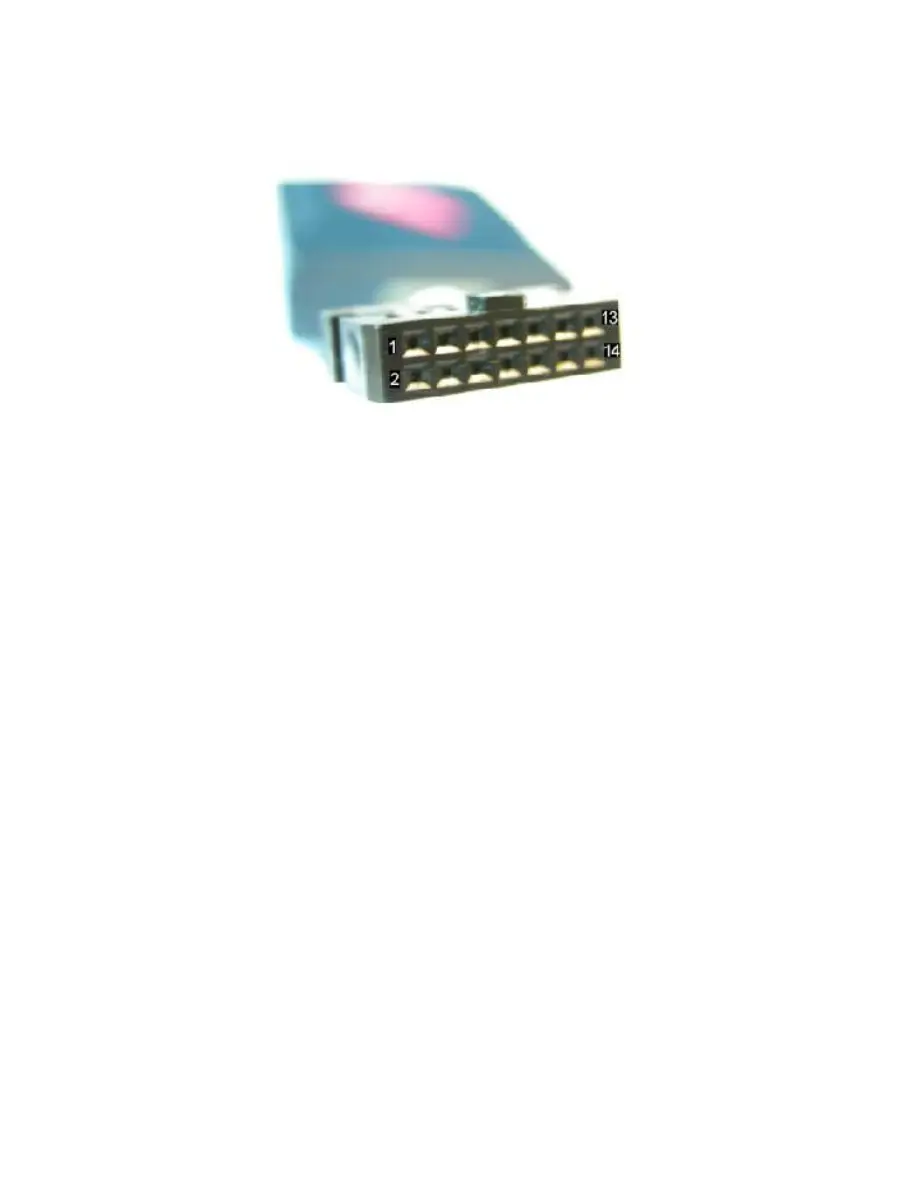

The numbering system above applies to the 14-pin FDM and E8. This numbering system does not apply to
the 20-pin FDM connector.
