User Manual Bearing System RT-300
Issue: 2017/06/27 [Rev 1.04.c] Page 43 of 79 12-9-1-0013-9-2-0001-3-1-60
6.2.1.5.1.5 Adj. Extended Display of Last Bearing Result: SET BEARING LAST TIME
After receiving the last signal, the bearing result is still displayed for a
certain adjustable time. This adjustment is done in submenu BEARING
- LAST TIME.
Operating:
- Using keys 3 <  > and 8 <  > select the minutes or seconds to be changed. The selected
digit is shown underlined.
- Increase or decrease the corresponding value by using keys 5 < + > and 10 < – >.
- Key 6 < Ok > will confirm the selected value. The device is returning to the next higher level
in the menu.
- Key 9 < Esc > will reject the selected value. The device will return to the next higher level in
the menu and will work with the previous adjustment.
6.2.1.5.1.6 Heading Compensation for REPEAT-FUNCTION: LAST VALUE
COMPENSATION
The bearing result is always a relative bearing referring to the
antenna´s longitudinal axis. If compass information’s are available, the
bearing result can be converted to a direction, referring to north,
independent of the antenna axis.
NOTE
The LED-circle will always indicate the relative bearing.
If now activating the REPEAT-function (showing the last bearing result – see 5.2.8), the
displayed bearing value is the relative bearing value with the vehicles heading at the time when
the last bearing signal was received. If there was a change of heading after the last bearing and
after activating the REPEAT-function, the indicated bearing value has lost its meaning
completely.
If compass data are available (external or internal), the change of heading can be measured. If
activating now the REPEAT-function, the indicated value will be corrected for the present
heading.
NOTE
There will only be compensated changes of heading of the own vehicle. Changes of bearing
angles, caused by a change of position of the bearing or transmitting station will - of course - not
be considered.

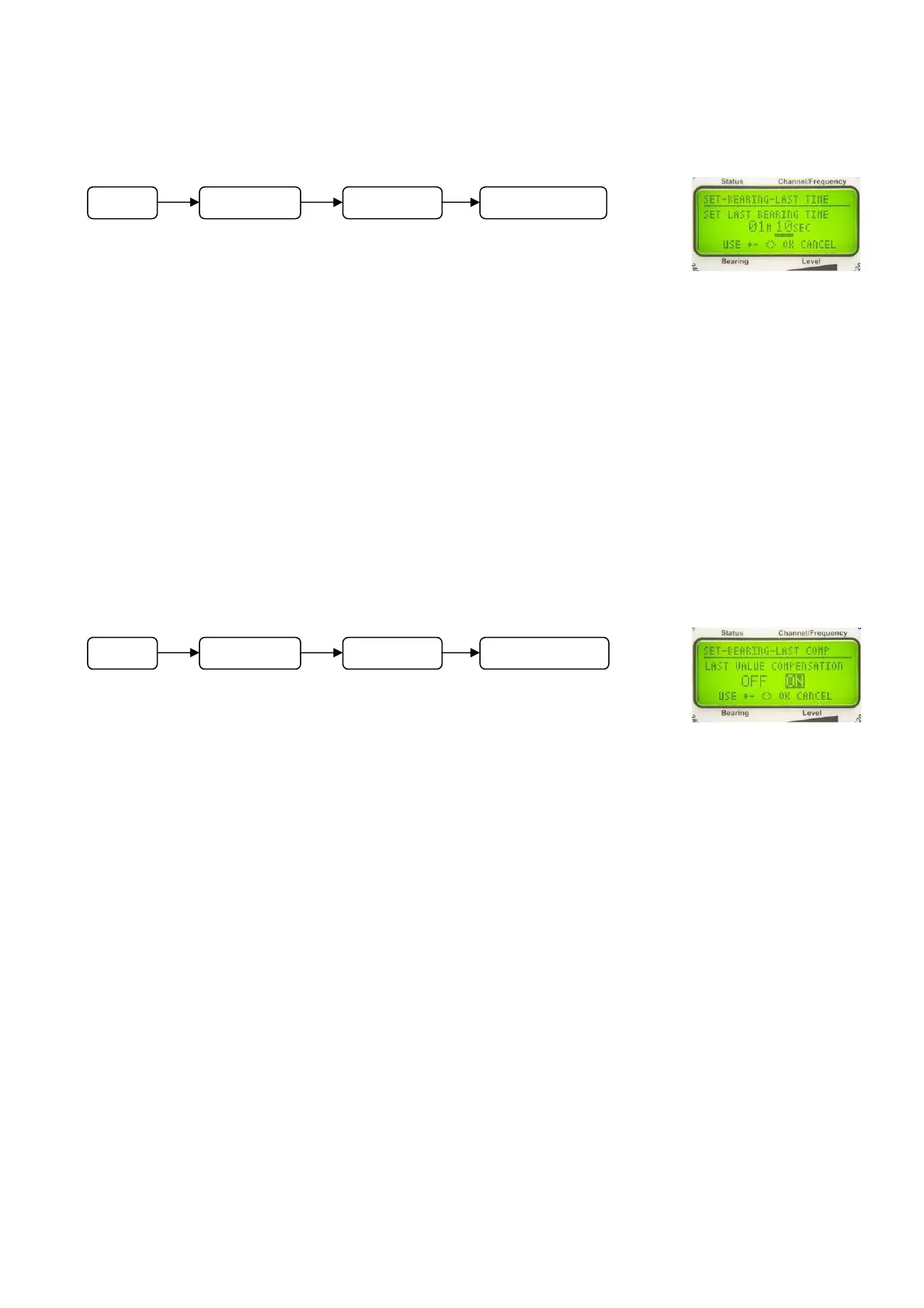

Fig. 58
Fig. 59
M
e
n
u
SETUP BEARING LAST TIME
M
e
n
u
SETUP BEARING LAST COMP
