Ricoh Aficio MP 1600L2 - Page 102

10. Tighten the screw [A].
11.
Tighten the screws on the laser unit.
12.
Reinstall the copy tray.
13.

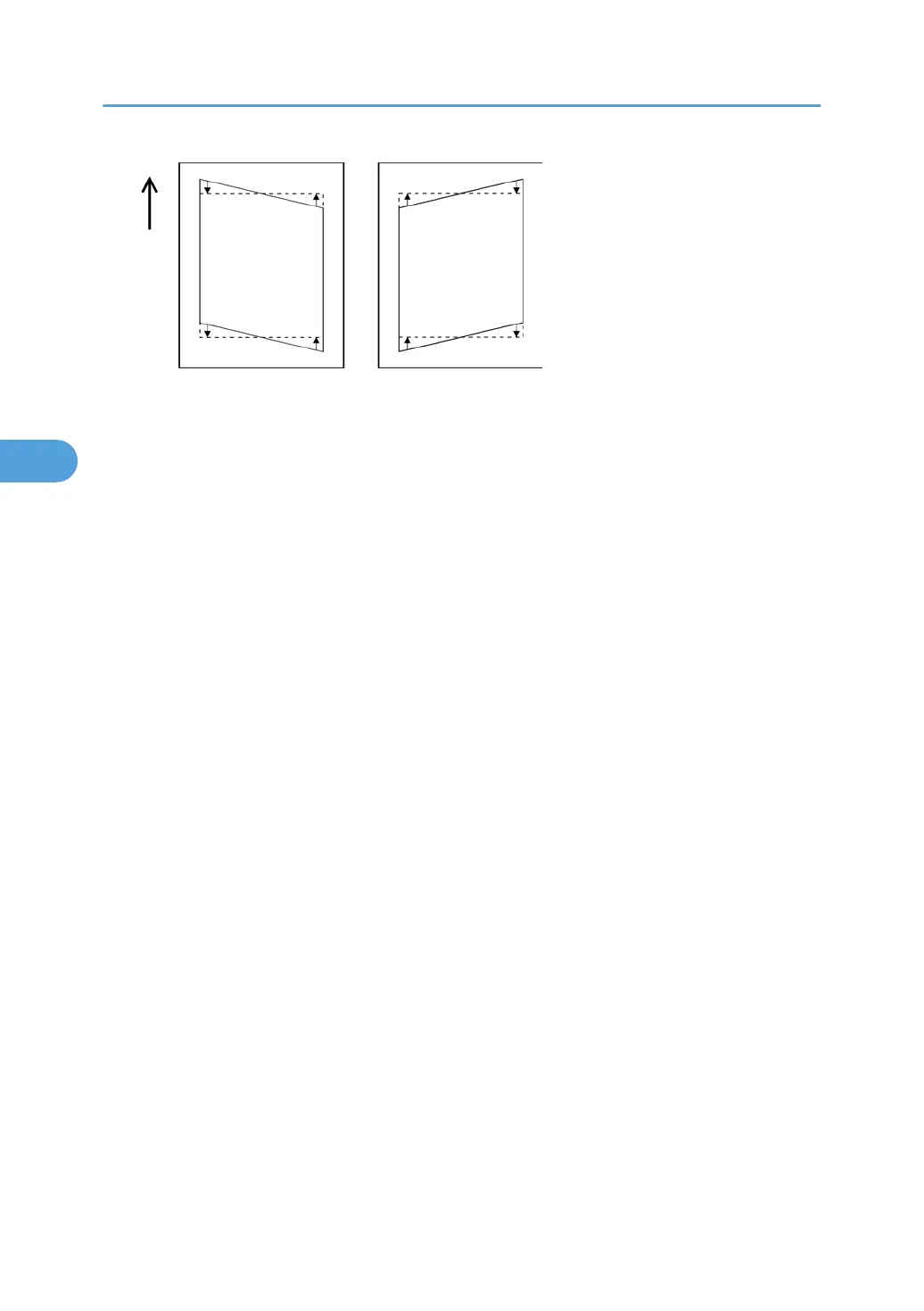

Print the trim pattern and check the result. Do the procedure again if further adjustment is required.
4. Replacement and Adjustment
100
4
