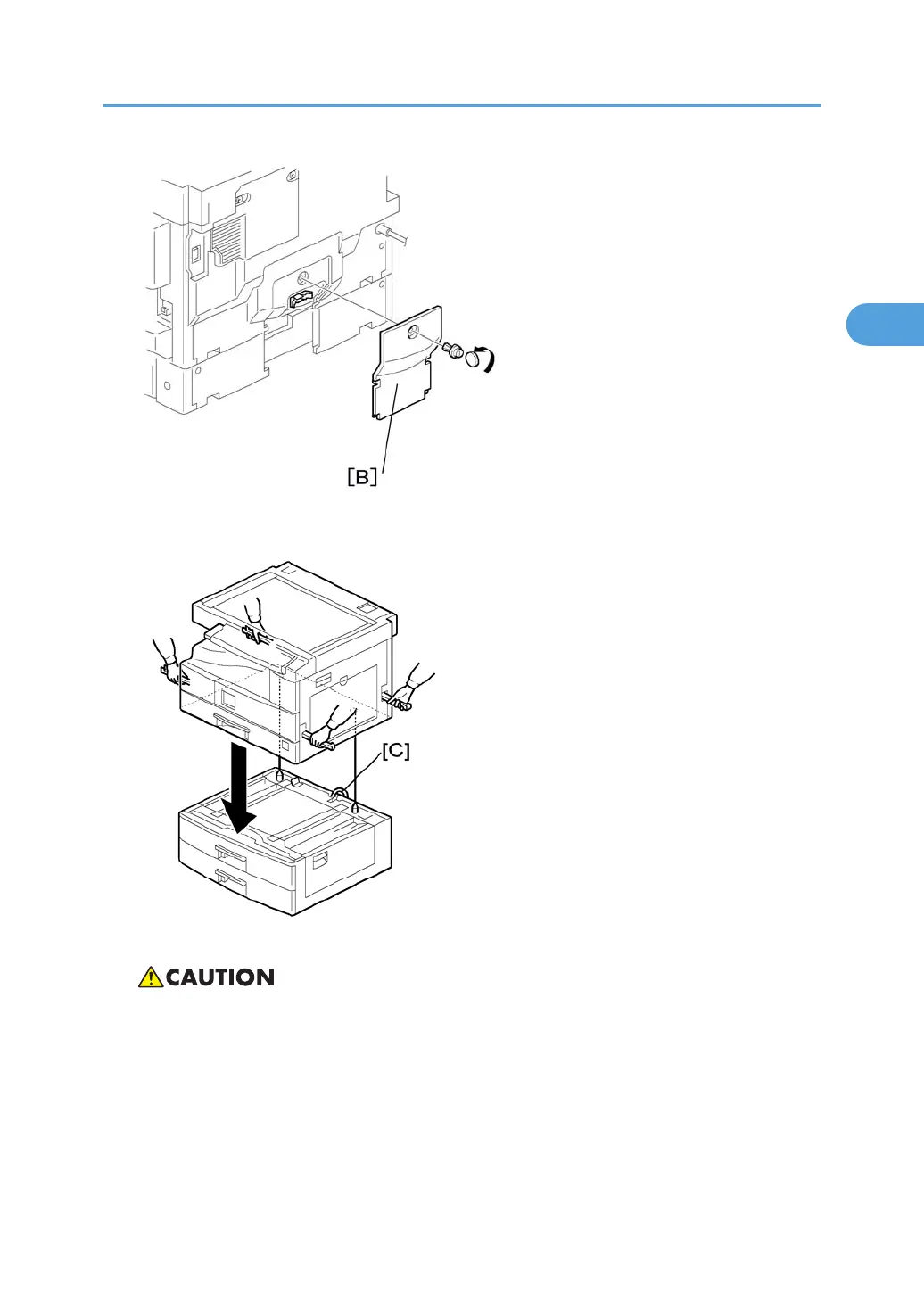

3. Remove the cover [B] (1 rivet).
4. Set the copier on the paper tray unit.
• Before
placing the copier on the paper tray unit, make sure that the harness [C] is safe. The paper
tray unit does not function properly if the harness is damaged.
Two-tray Paper Tray Unit Installation
