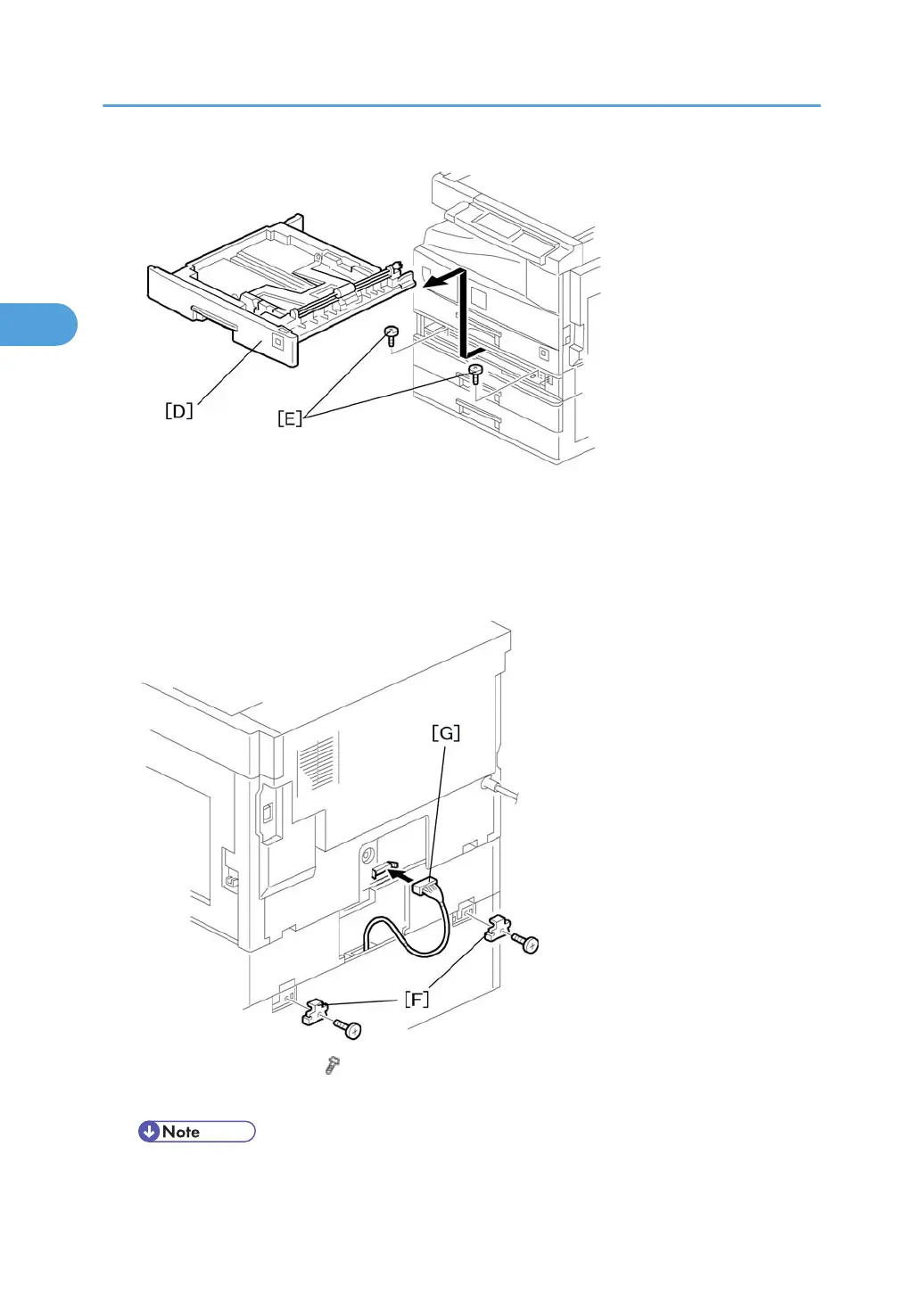

5. One-tray copier model (B268/B276): Remove the 1st tray cassette [D].
Two-tray copier models (B244/B269/B277): Remove the 2nd tray cassette [D].
6. Install the two screws [E].
7. Reinstall the tray cassette.
8. Install the two brackets [F] ( x 1 (each))
9. Connect the connecting harness [G] to the copier.
• There are cutouts for the plugs on both sides. The left side has one cutout, and the right side has
two.
2. Installation
40
