Adjusting the Second Scanner Contact Points
1. A(R)DF or platen cover
2. Operation panel, top rear cover ( p.78 "Upper Covers").
3. Exposure glass ( p.85)

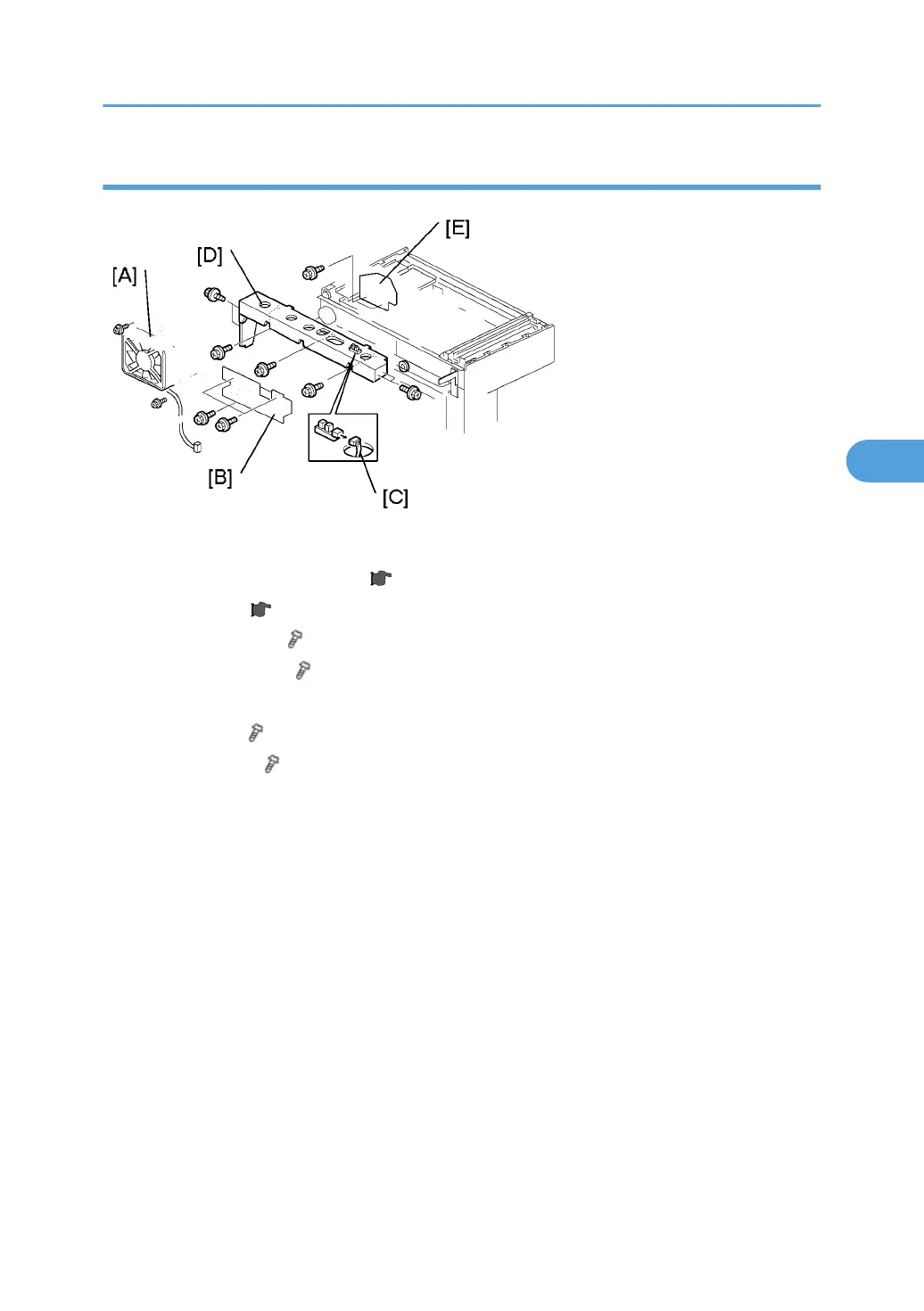

4. Rear exhaust fan [A] ( x 2)
5. Controller bracket [B] ( x 3)
6. Disconnect the platen-cover-sensor connector [C].
7. Rear frame [D] ( x 7)
8. Scale bracket [E] ( x 2)
Scanner Unit
93
