2000/3000-sheet Finishers (D373/D374)
D062/D063/D065/D066 2-60 SM
If you are installing the Cover Interposer B704:
Do not attach the sponge cushion to the finisher. It must be attached to the cover
interposer.
Do not attach the grounding plate [B] to the finisher. It must be attached to the cover
interposer.
Install the interposer now. The cover interposer must be installed before you dock the
finisher to the copier.

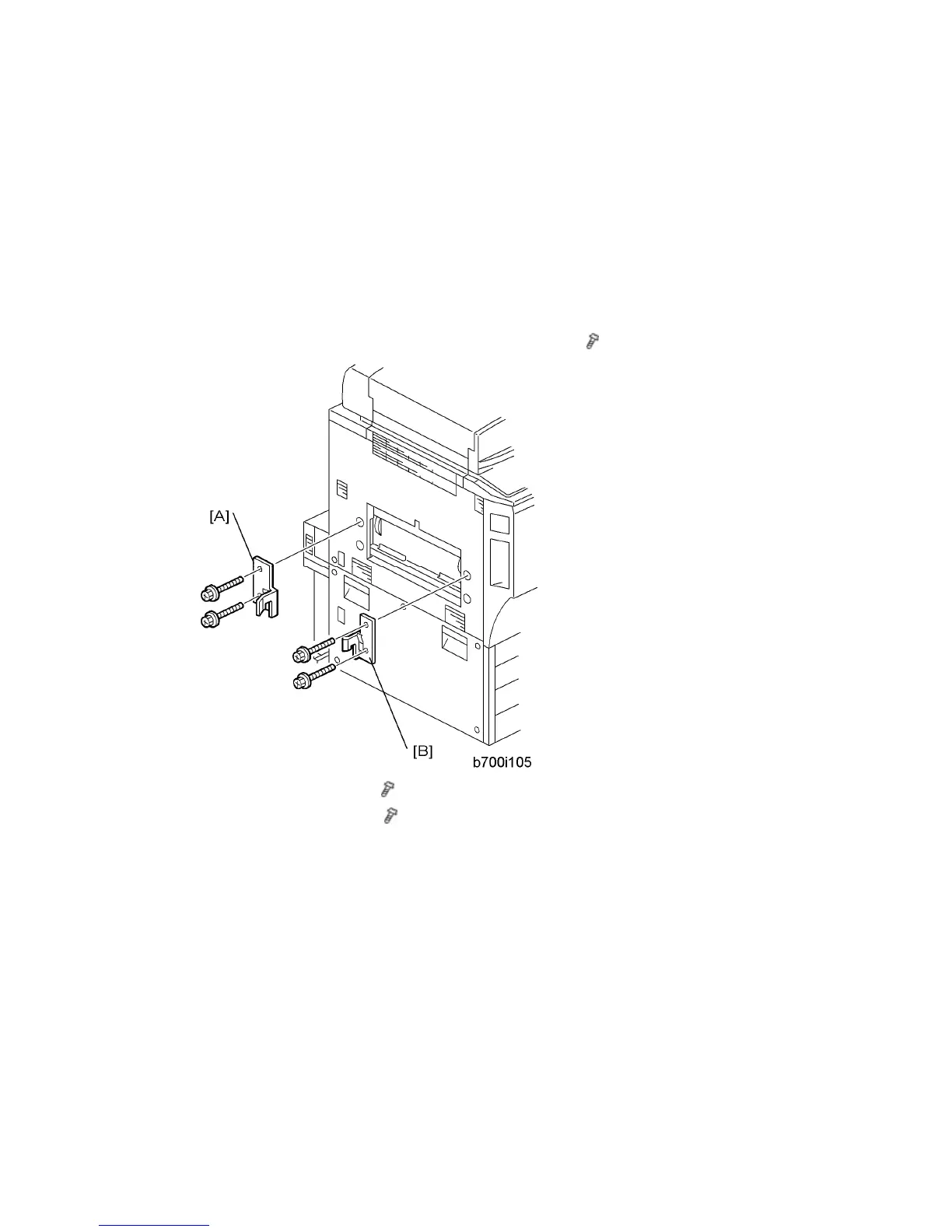

1. Use a short screwdriver to attach the grounding plate [B] (
x 2, M3 x 6).
2. Attach the rear bracket [A] (
x 2, M4 x 14).
3. Attach the front bracket [B] (
x 2, M4 x 14).
