Paper Feed
SM 4-97 D062/D063/D065/D066
Replacement
and
Adjustment
When the customer is experiencing feed problems
Remove:
Feed unit (
p.4-92)

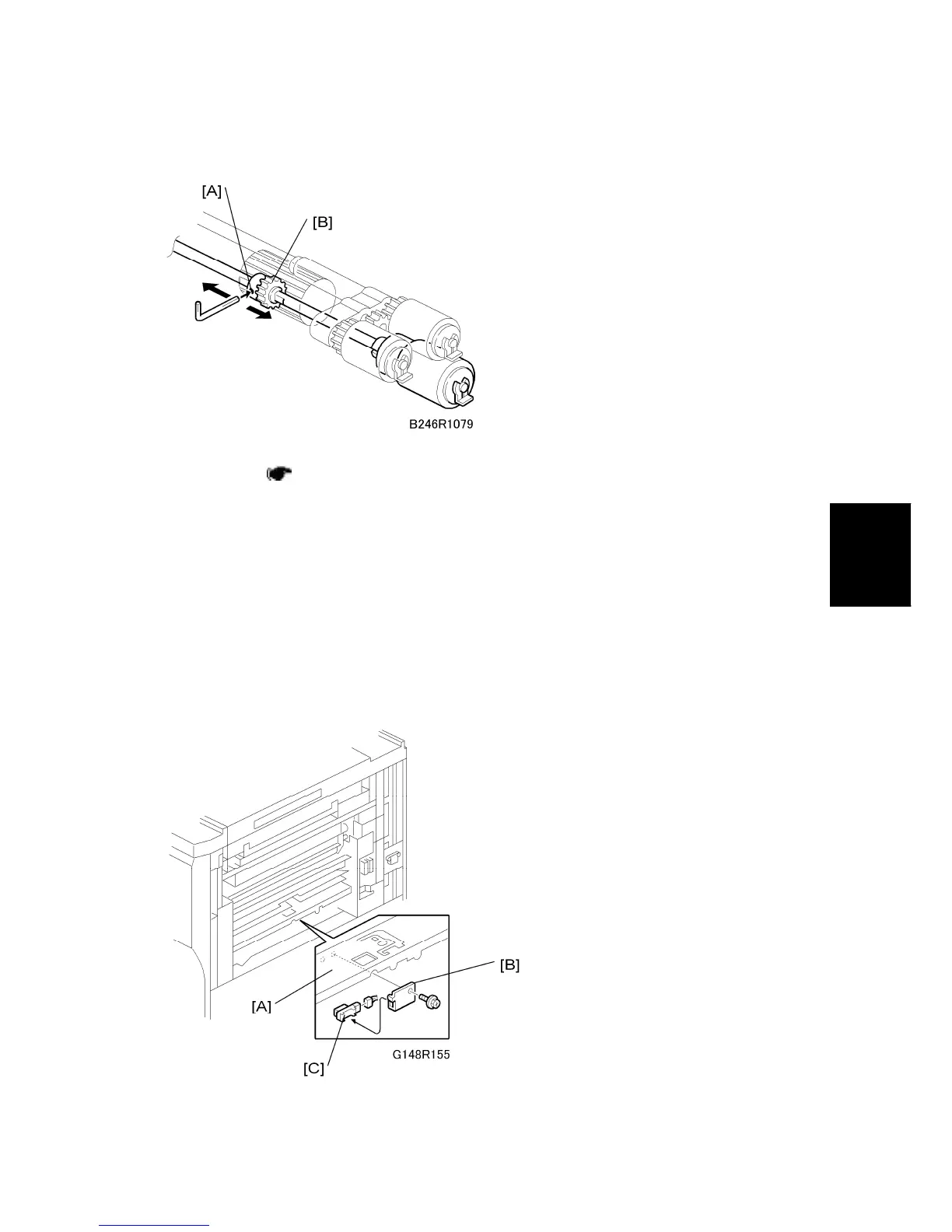

1. Loosen the hex screw [A].
2. The separation roller gear [B] is positioned at the groove before shipping.
3. Do one of the following:
To adjust for thick paper, move the separation roller gear [B] to the left to decrease
the pressure.
To correct misfeeds, move the separation roller gear to the right to increase the
pressure.
4.11.12 RELAY SENSOR
