Replacement and
Adjustment
D454 18
SM
4.
FM6 pawl motor [A] (
x
2)
1.3.5

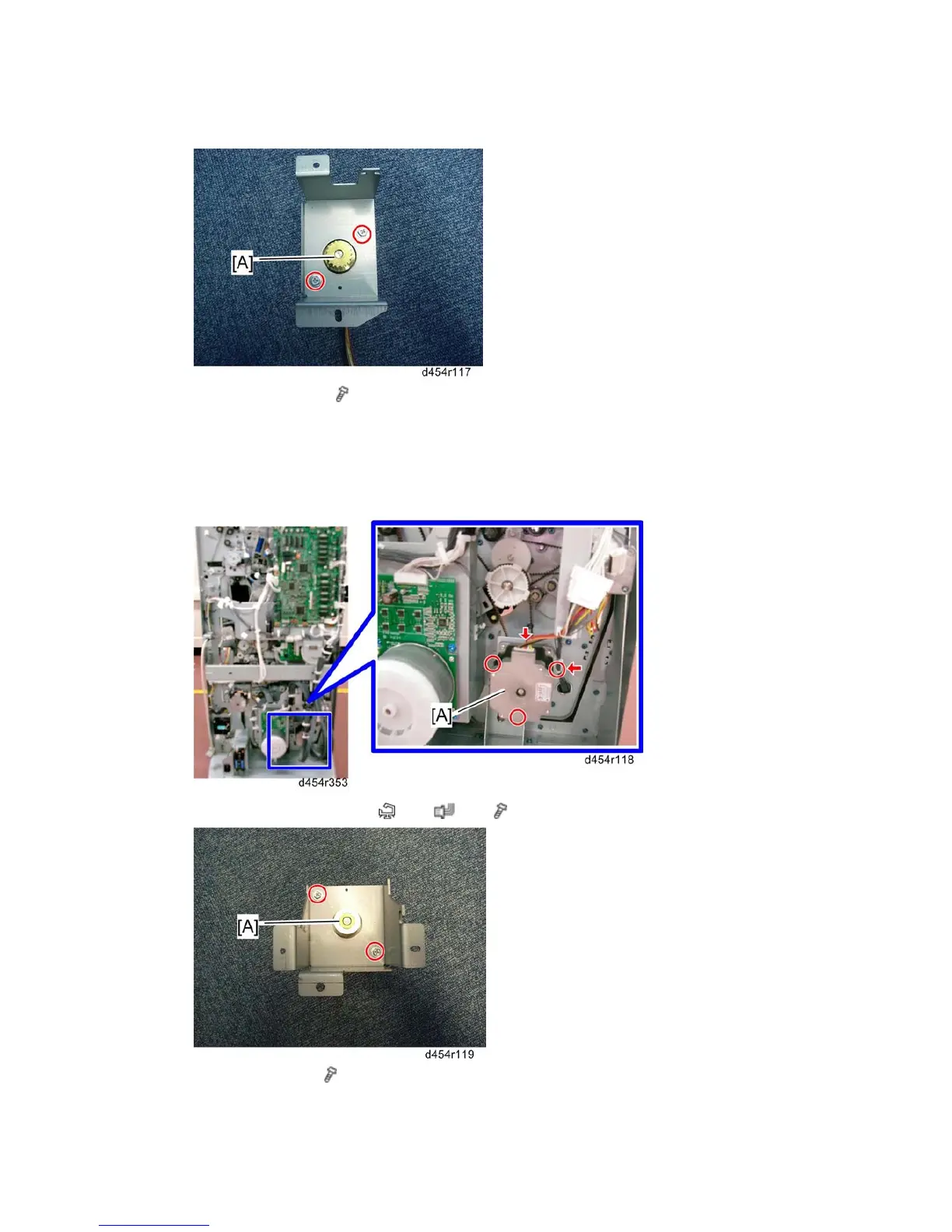

2ND FOLD MOTOR
1.
Rear upper cover (
p.4)
2.
Rear lower cover (
p.4)
3.
2nd fold motor bracket [A] (
x
1,
x
1,
x
3)
4.
2nd fold motor [A] (
x
2)
1236
1238
