Paper Feed
D062/D063/D065/D066 4-96 SM

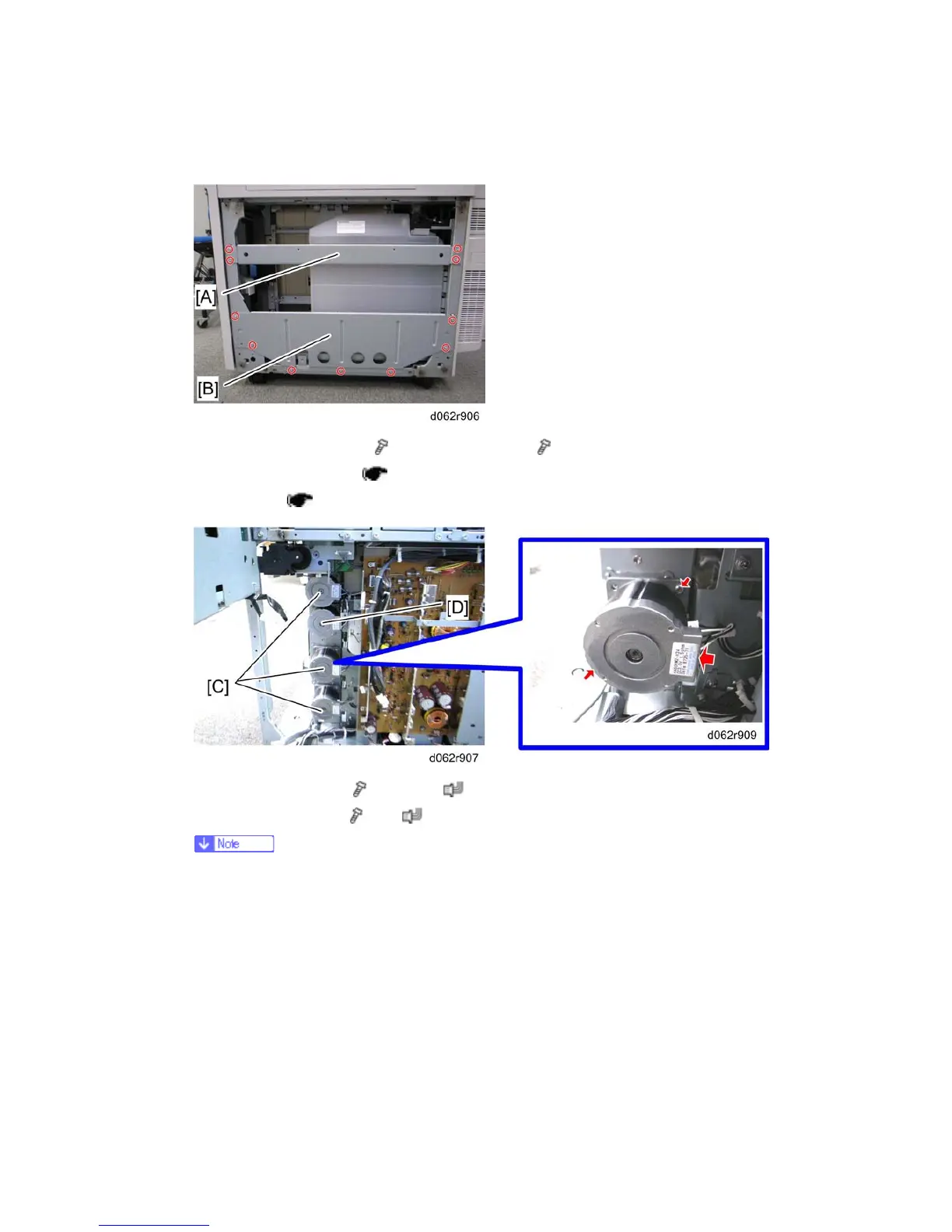

Remove the feed unit corresponding to the motor which will be removed.
3. Remove the right stay [A] (
x 4) and bracket [B] ( x 7).
4. Open the controller box (
p.4-110 "BCU")
5. PFB bracket (
p.4-112)
6. Paper feed motors [C] (
x 2 each, x 1).
7. Lower relay motor [D] (
x 2, x 1).
The positions of the two screws which fasten the paper feed motor are
different for each motor.
Paper feed motor 1: Left upper and right lower.
Paper feed motor 2 and 3: Right upper and left lower.
4.11.11 SEPARATION ROLLER PRESSURE ADJUSTMENT
The position of the drive gear for the separation roller can be changed in order to change
the amount of pressure exerted by the separation roller. This adjustment can be done:
When feeding special paper, especially thick paper
