Scanner
SM 4-11 D062/D063/D065/D066
Replacement
and
Adjustment
Top Covers

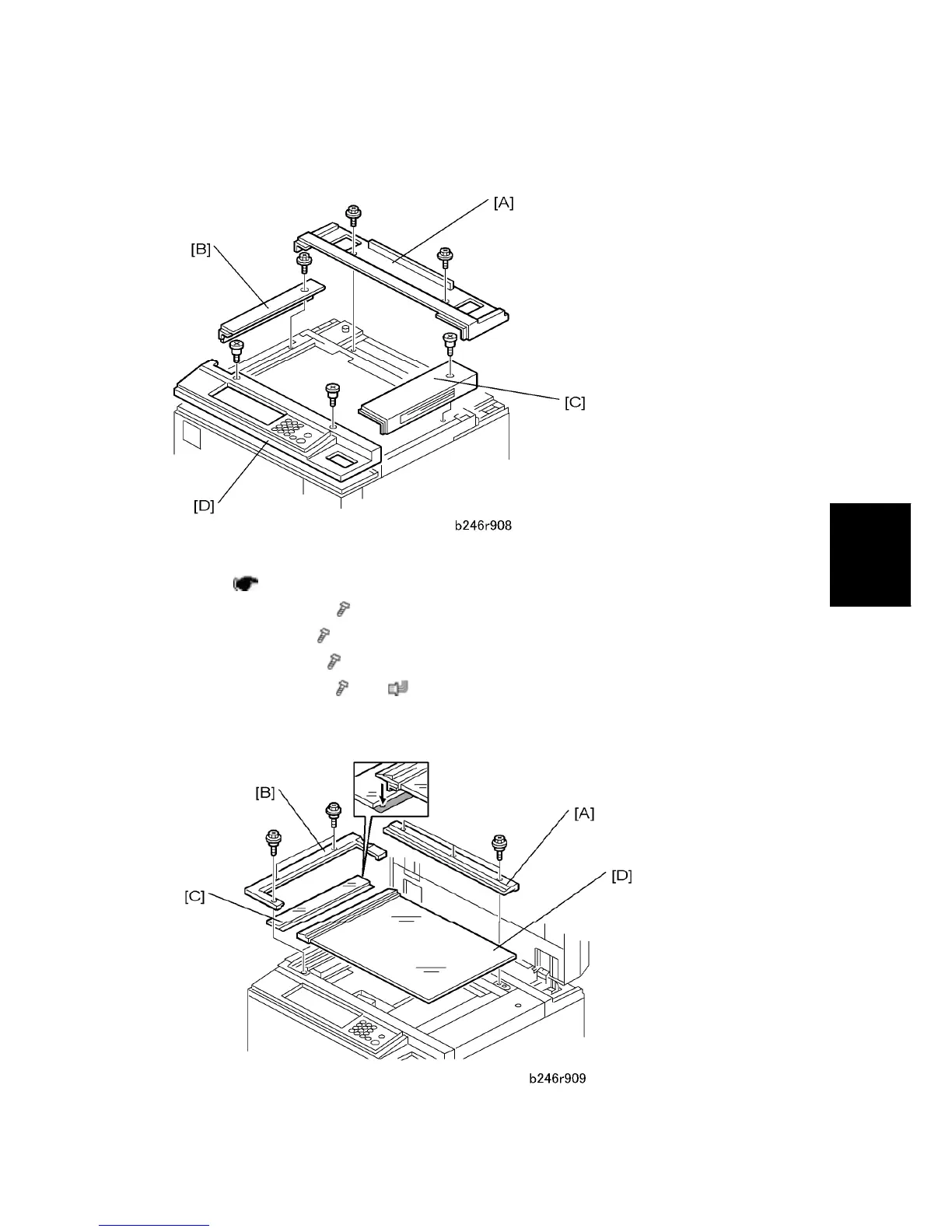

Remove the following parts:
1. ADF (
p.4-10)
2. Top inside cover [A] (
x 2)
3. Top left cover [B] (
x 1)
4. Top right cover [C] (
x 1)
5. Operation panel [D] (
x 3, x 1, ground cable x 1)
