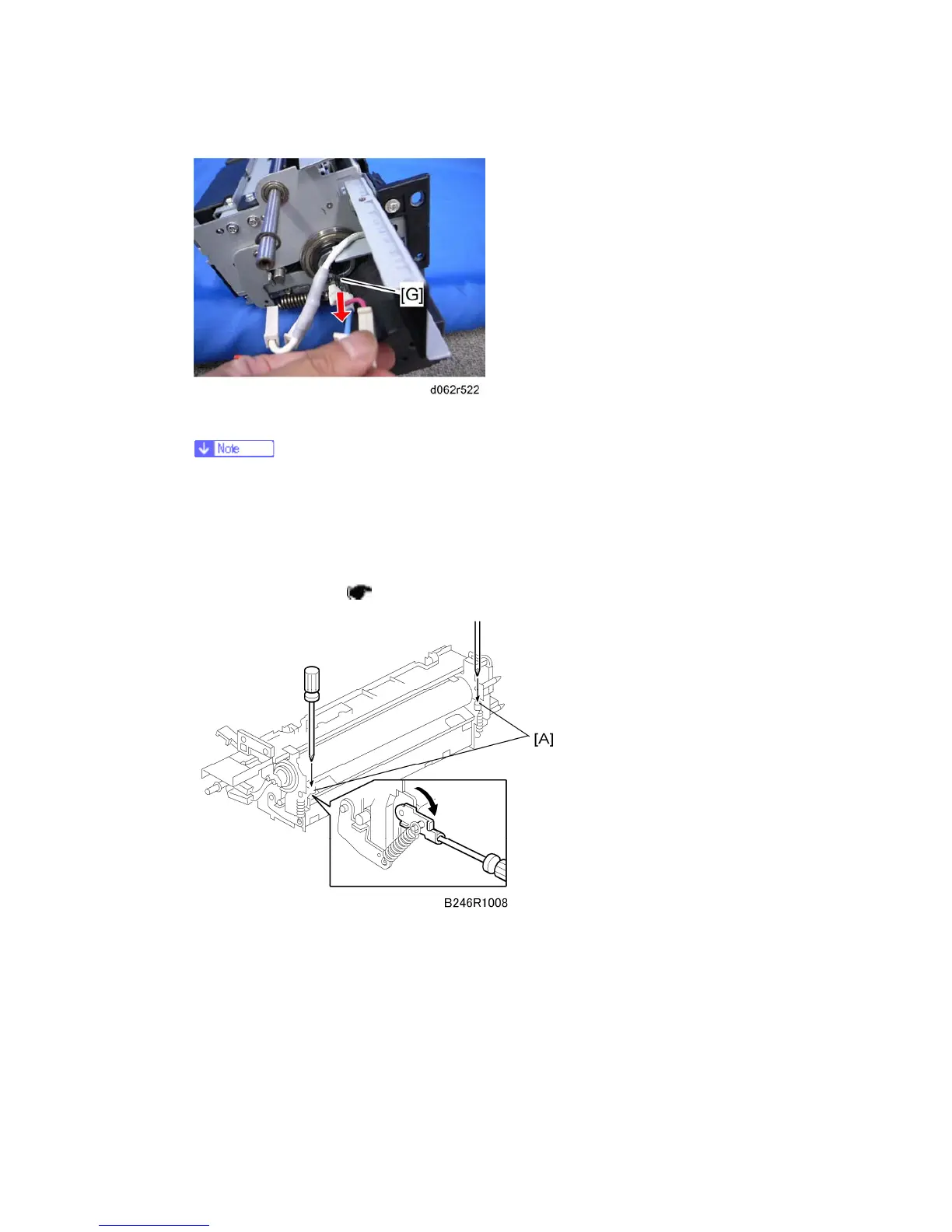

Fusing Unit
D062/D063/D065/D066 4-66 SM
7. Fusing lamps [G] (x 2)
Be careful when you move the fusing lamps. Do not break them. Do not touch
them with bare hands.
Hot Roller and Pressure Roller
Use this procedure when you want to remove both rollers.
1. Remove the web unit (
p.4-59)
2. Pressure arm [A]
Insert the tips of two screwdrivers and press down to release.
