ADF
D062/D063/D065/D066 4-116 SM
4.13.2 FEED UNIT

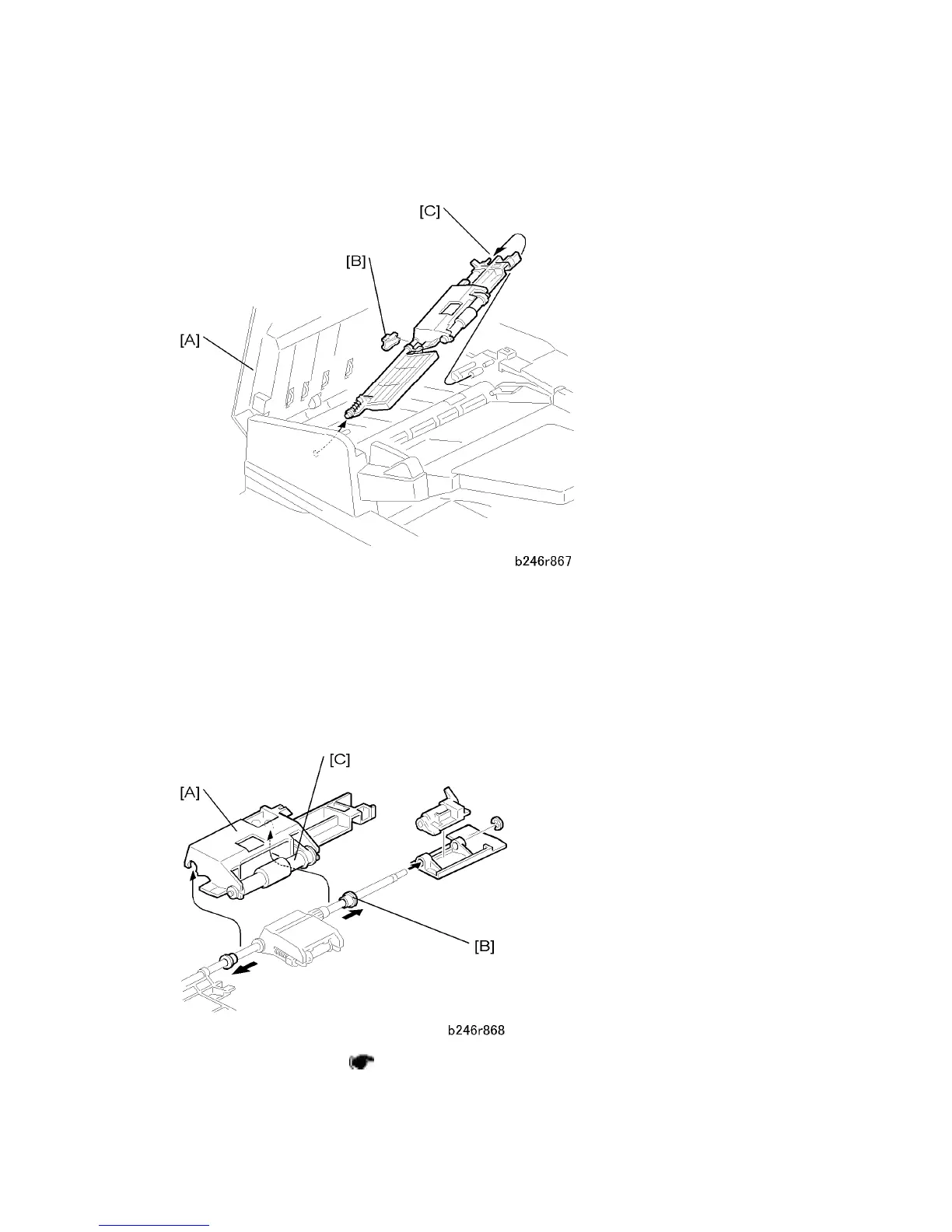

1. Open the feed cover [A].
2. Remove the snap fitting [B].
3. Push the feed unit slowly to the left to disengage the shaft [C] on the right, then lift it
out.
4.13.3 FEED BELT AND PICK-UP ROLLER
1. Remove the feed unit (
p.4-116).
2. Remove the pick-up roller unit [A].
