Ricoh Aficio MP 7001 SP Service Manual

ADF
SM 4-117 D062/D063/D065/D066
Replacement
and
Adjustment
3. Remove the bushings [B].
4. Remove the pick-up roller [C].
 At re-assembly, make sure that the tab on the front guide plate is above the
pick-up roller.

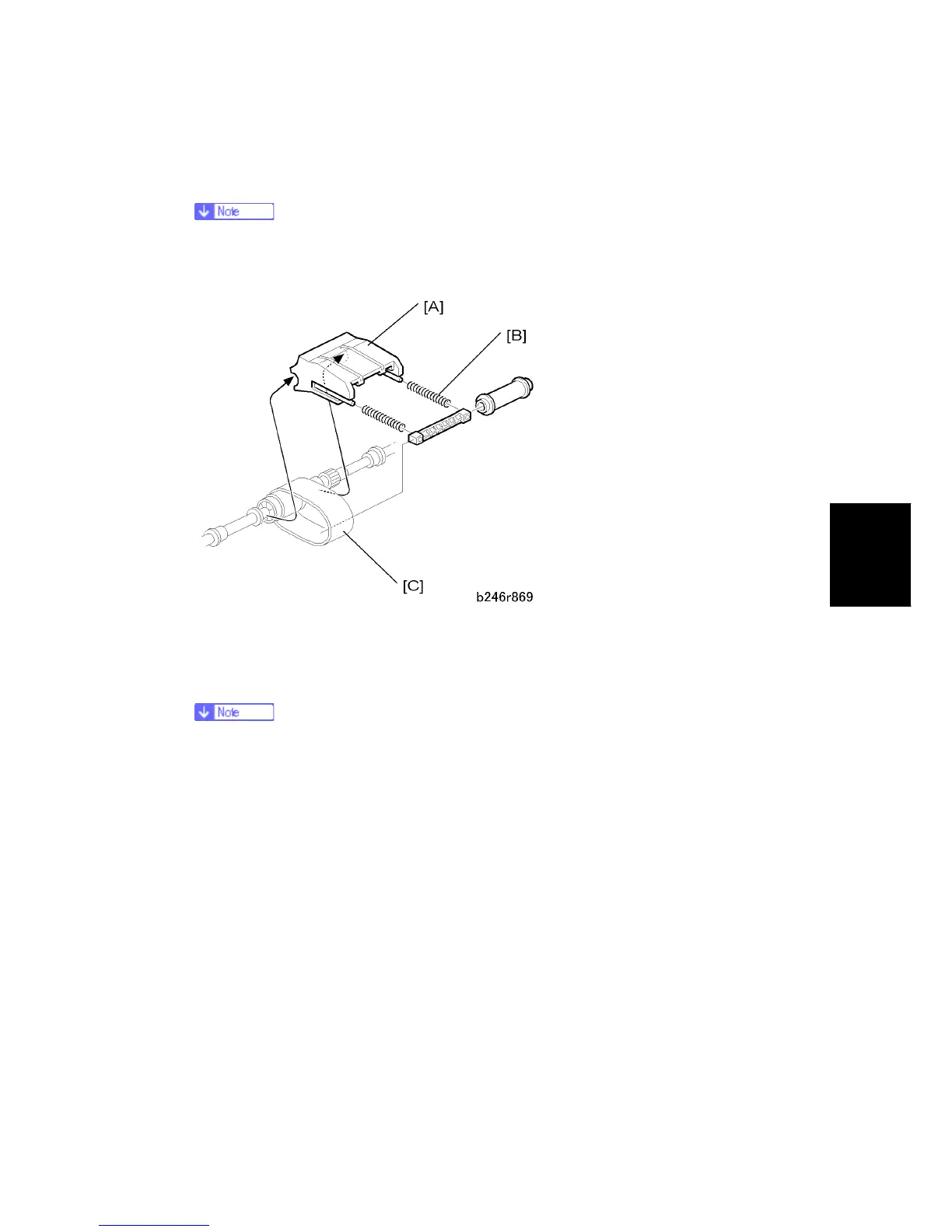

5. Hold the feed belt holder [A] by the left and right sides, then carefully pull it off the
bushing. Do not let the springs [B] fall.
6. Remove the feed belt [C].
 When re-assembling, set the pick-up roller springs first, then follow this
procedure in reverse.
