Ricoh Aficio MP 7001 SP Service Manual

Paper Path
SM 101 D454
Multi-Folding
Unit FD5000
D454

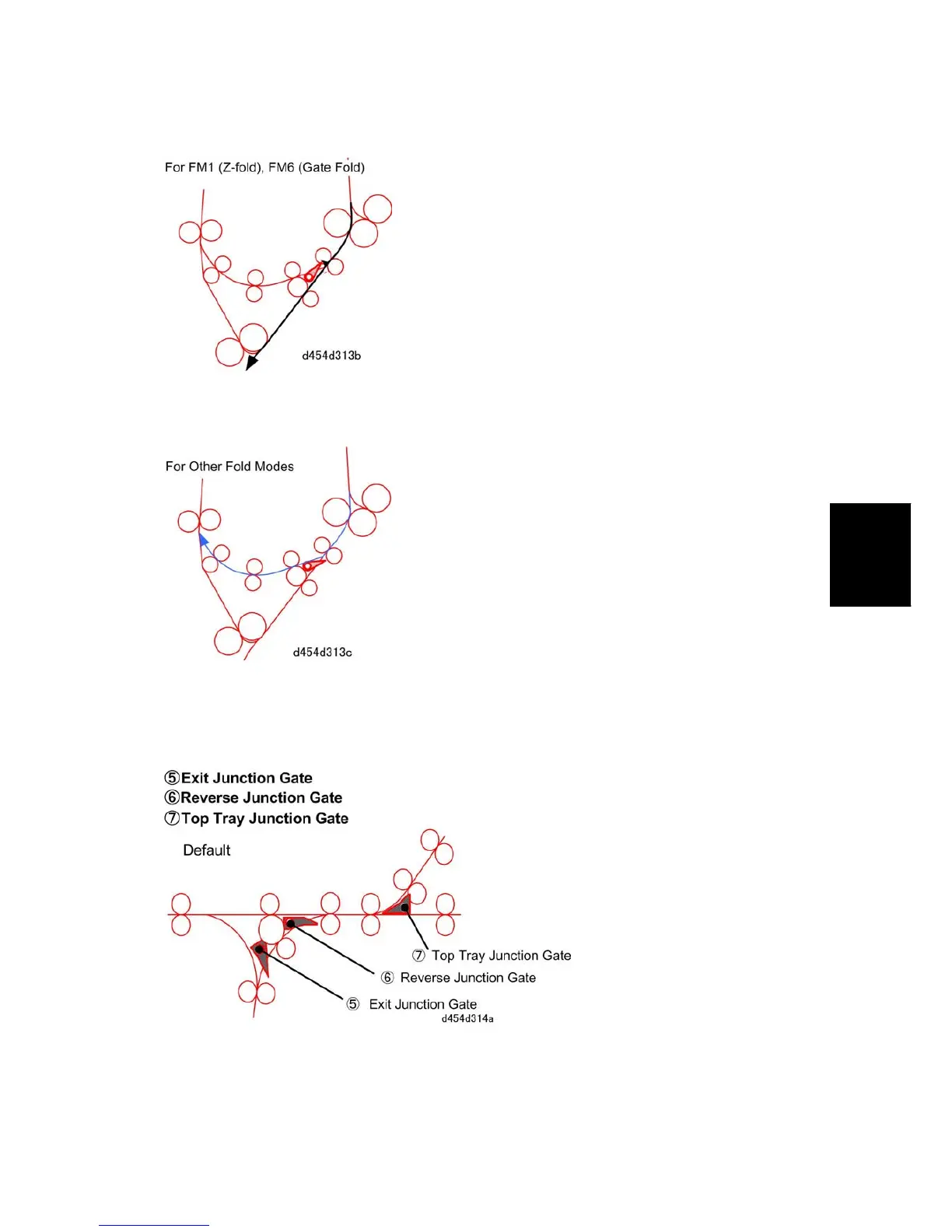

When FM1 (Z-fold) or FM6 (Gate Fold) is selected, the bypass junction gate raises and
allows paper to pass to folder unit 2.
For fold modes other than FM1, FM6 the bypass junction gate remains at it default position.
Paper passes over the top of the bypass junction gate and into the bypass paper path.
Exit, Reverse, and Top Tray Junction Gates
These three junction gates are shown above at their default positions.
