Ricoh Aficio MP 7001 SP Service Manual

REPLACEMENT AND ADJUSTMENT
SM 15 B513/B531
Output
Jogger Unit/
Punch Unit
B513/B53131

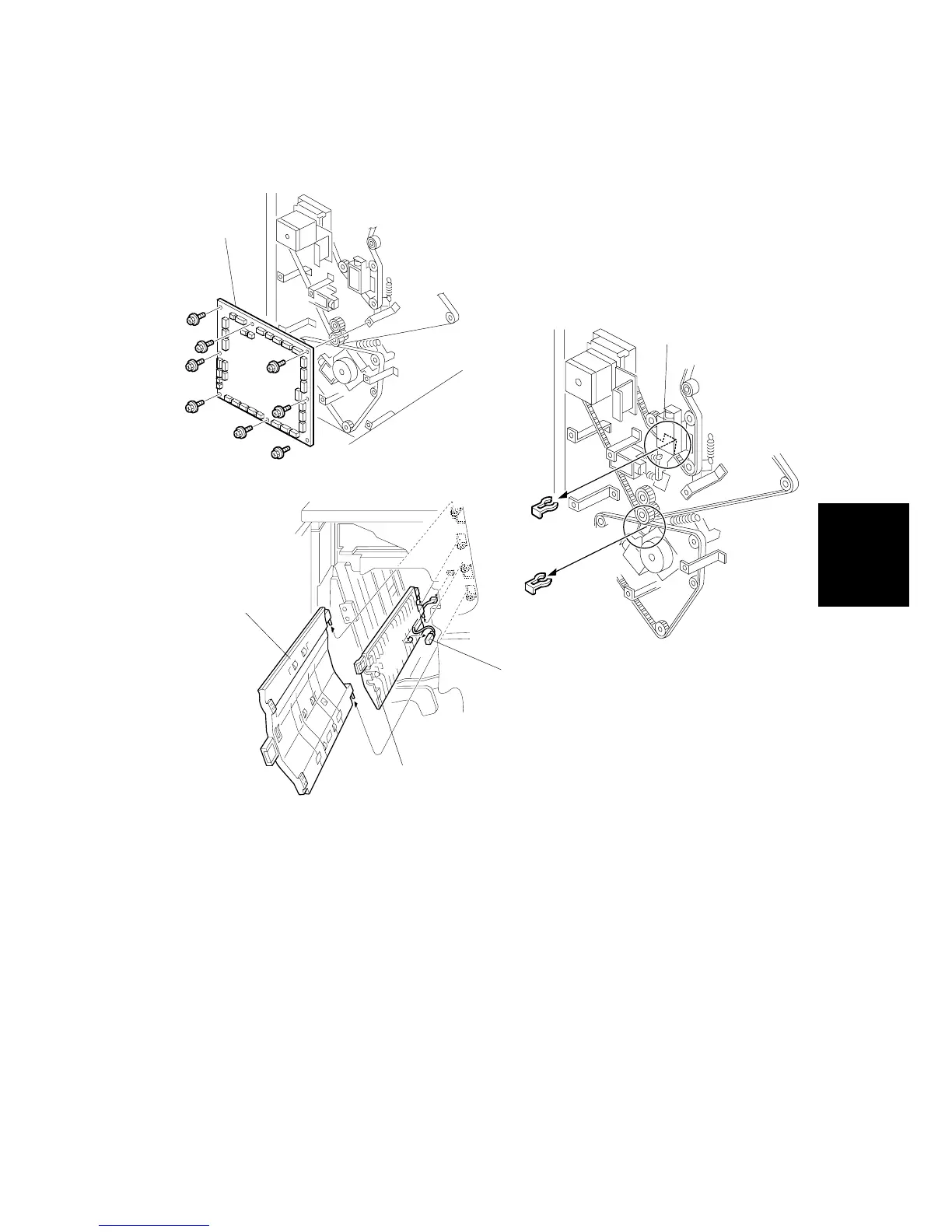

3.5.5 PRE-STACK PAPER SENSOR
1. Remove the rear cover.
2. Remove the main board [A] ( x 8,  x all).
3. Release the guide [B] ( x 2).
4. Open the front door.
5. Remove the left vertical transport guide [C].
6. Remove the middle vertical transport guide [D] ( x 1).
7. Replace the pre-stack paper sensor [E] ( x 1).
B478R521.WMF
B478R515.WMF
B478R516.WMF
[A]
[E]
[D]
[C]
[B]
