Duplex Unit
D062/D063/D065/D066 4-78 SM

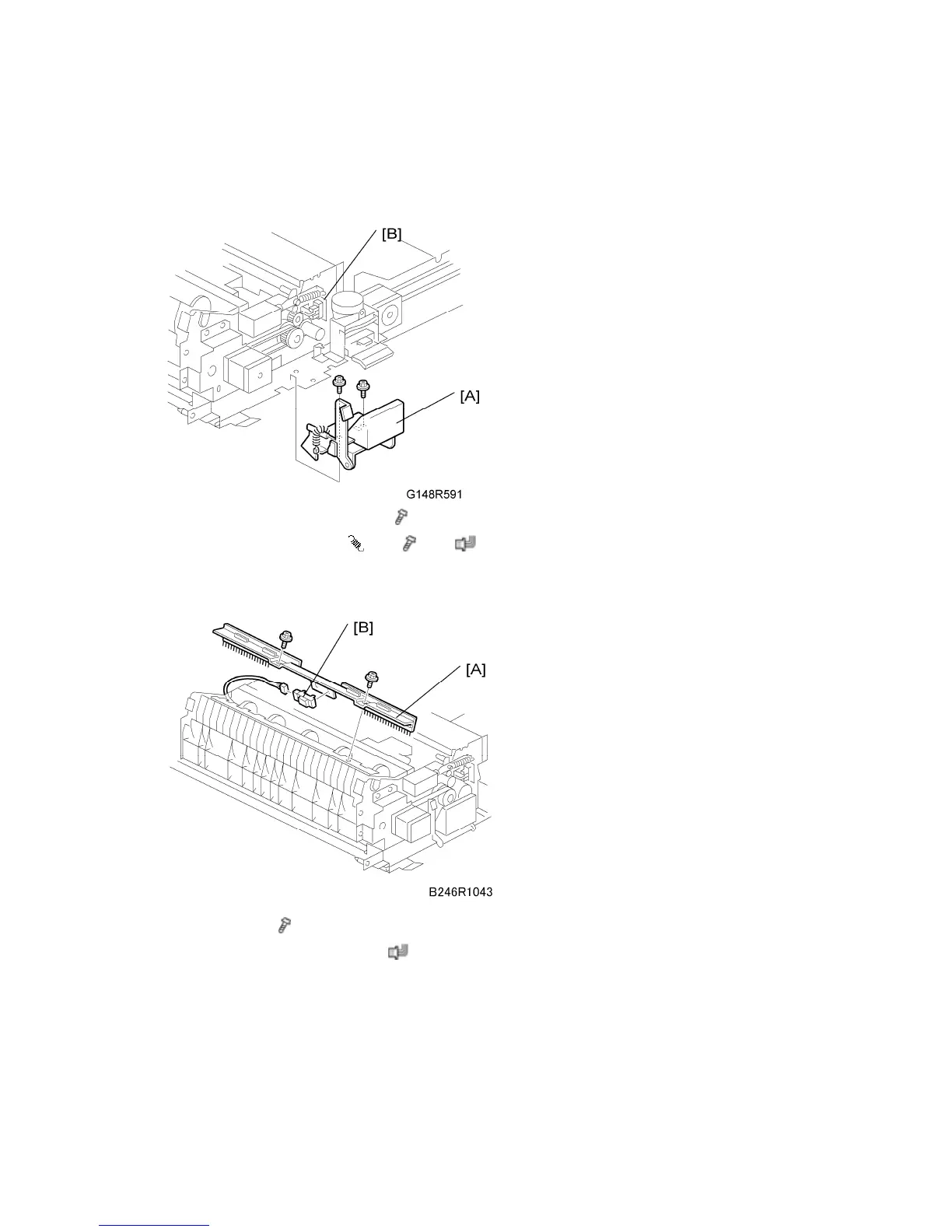

4.10.5 DUPLEX SENSORS
Jogger HP Sensor
1. Duplex unit release lever [A] (
x 2)
2. Jogger HP sensor [B] (
x 1, x 2, x 1)
Duplex Entrance Sensor
1. Bracket [A] (
x 2)
2. Duplex entrance sensor [B] (
x 1)
