Ricoh Aficio MP 7001 SP Service Manual

REPLACEMENT AND ADJUSTMENT
SM 17 B513/B531
Output
Jogger Unit/
Punch Unit
B513/B53131
3.5.7 STAPLER ROTATION HP AND STAPLER RETURN SENSORS
1. Remove the stapler unit. (See next page.)
2. Remove the stapler mount bracket [A] ( x 4, springs x 2).
3. Replace the stapler rotation HP sensor [B] ( x 1).
4. Replace the stapler return sensor [C] ( x 1).

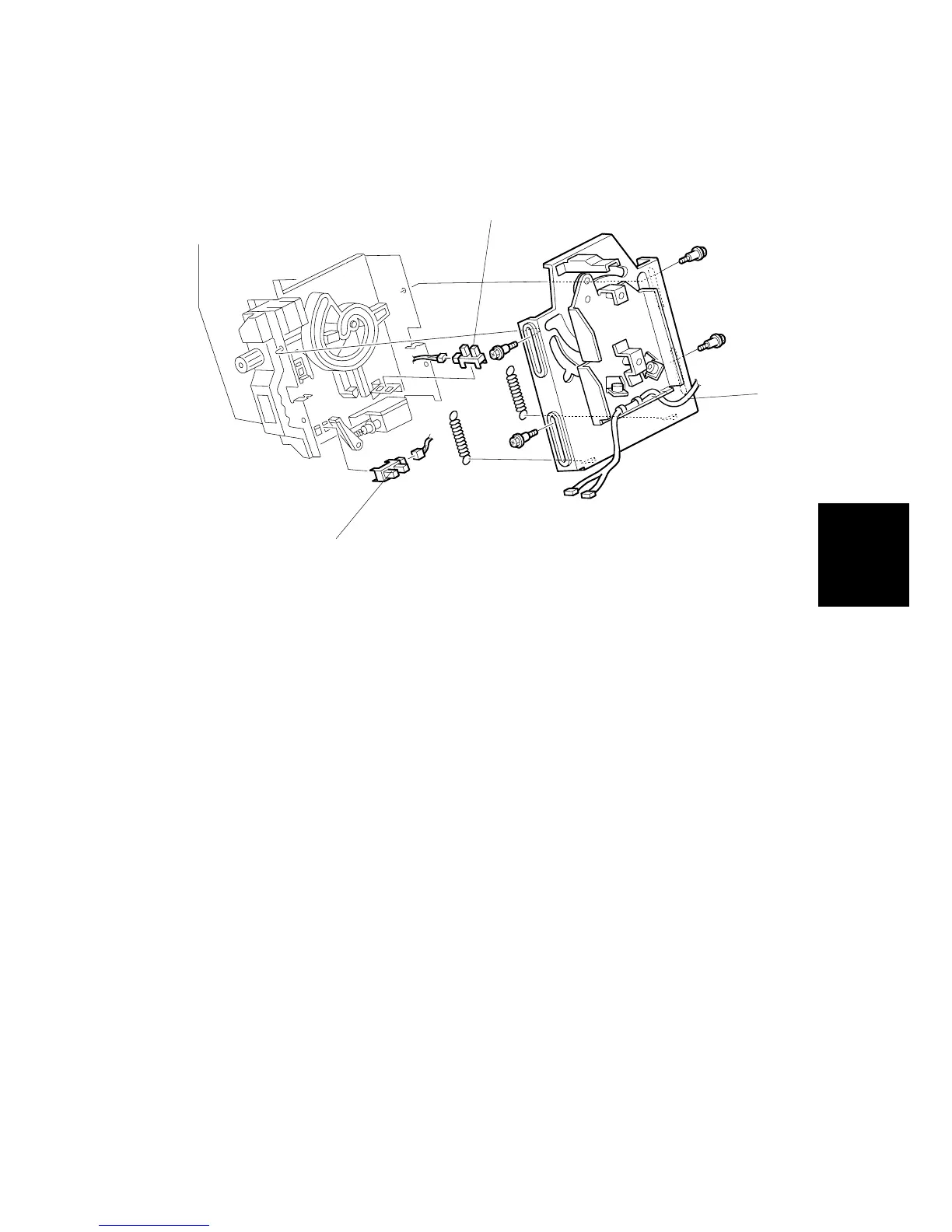

B478R519.WMF
[A]
[C]
[B]
