Main Machine

D062/D063/D065/D066 2-20 SM

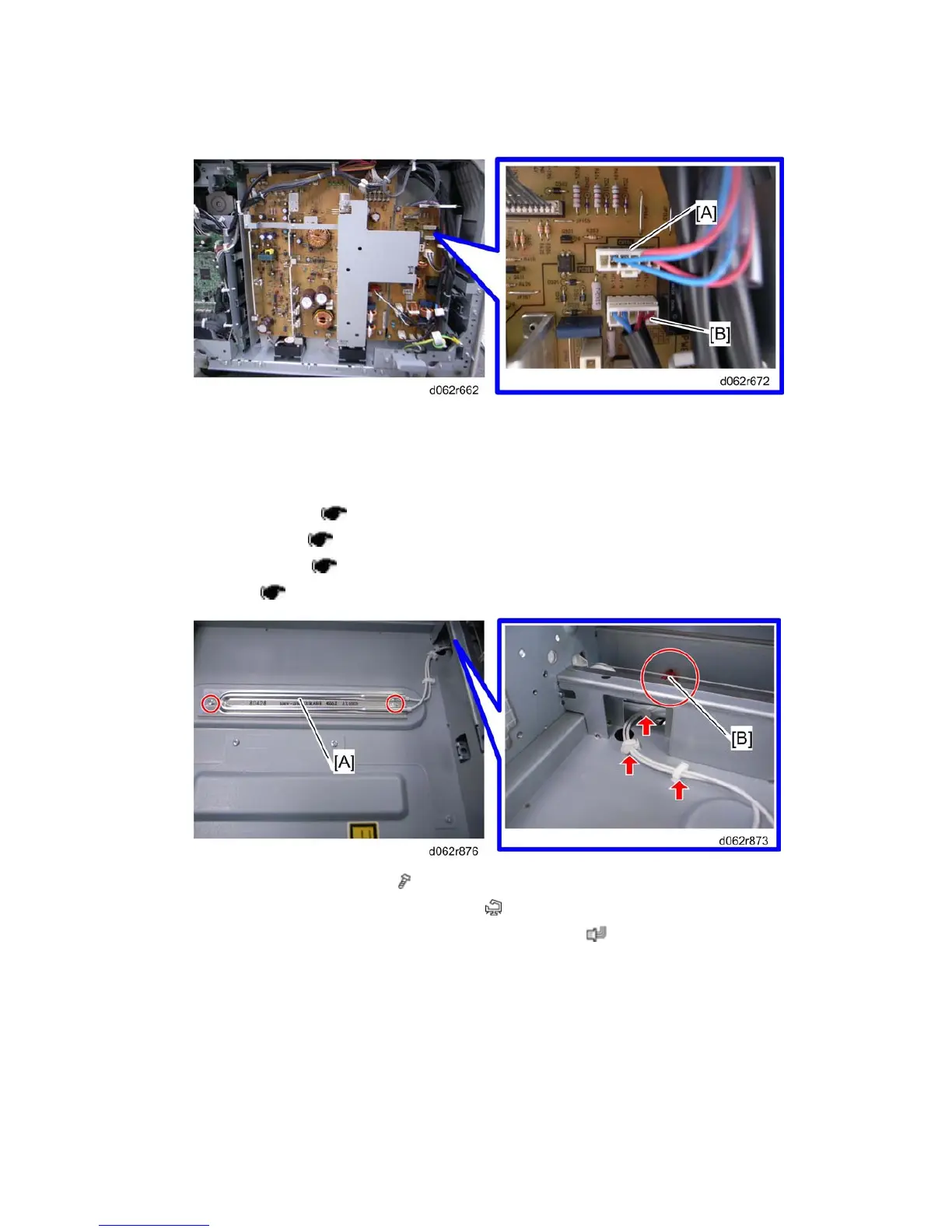

2. Connect the tray heater connector to the CN104 connector [A].

3. Connect the drum heater connector to the CN103 connector [B].

Installing the Scanner Heater

1. Rear upper cover ( p.4-8)

2. Exposure glass (

p.4-11)

3. Operation panel (

p.4-6)

4. Left stay (

p.4-17 "Scanner Wire Replacement").

5. Install the scanner heater [A] ( x 2)

6. Fasten the cable with the harness clamps (

x 3).

7. Fasten the connector [B] on the rear side of the machine (

x 1).
