Drum Unit
D062/D063/D065/D066 4-40 SM
1. Toner separation unit [A] ( x 3, tube x 1)

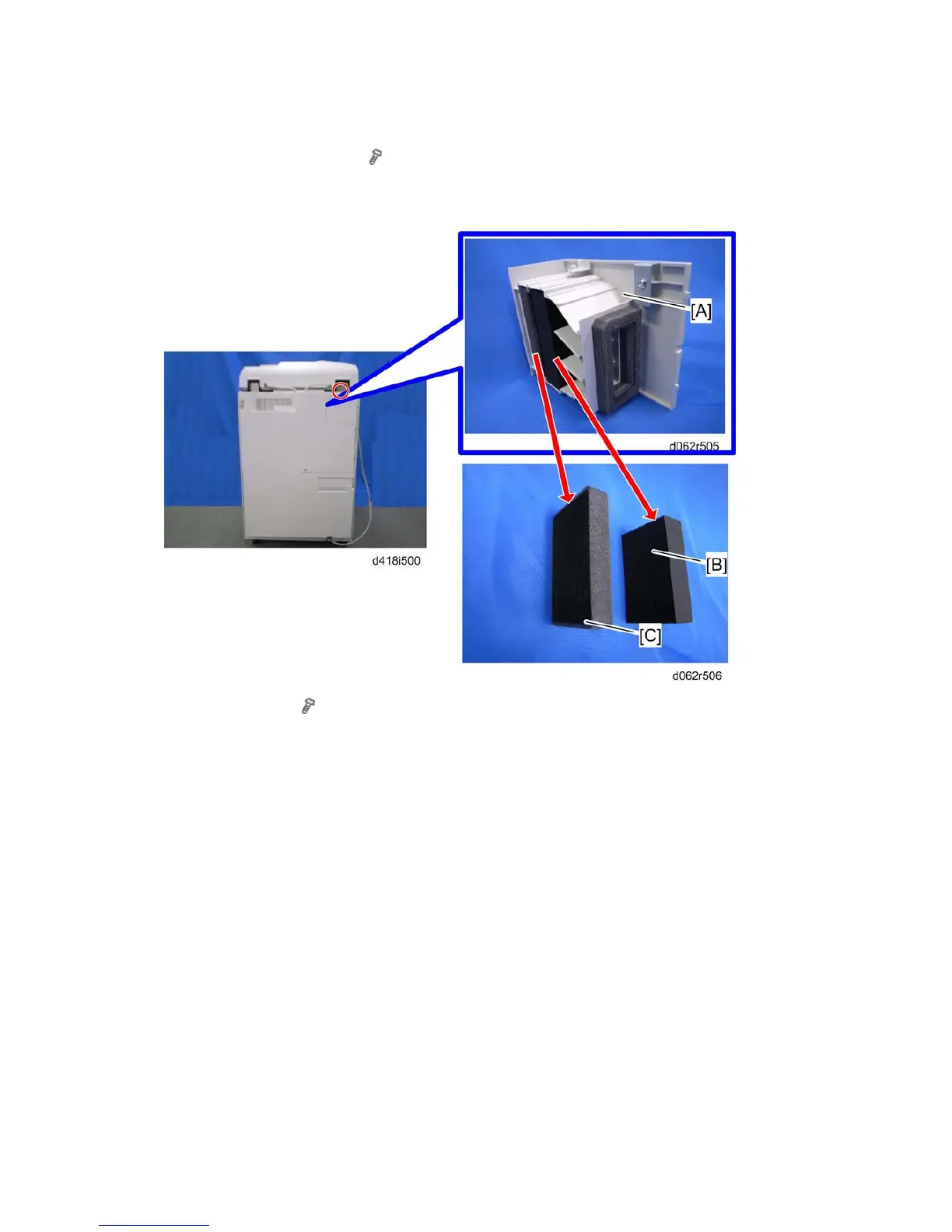

4.6.17 OZONE FILTERS
1. Filter cover [A] (
x 1). (The filter cover is on the back of the machine.)
2. Ozone filter (right) [B]
3. Ozone filter (left) [C]
