REPLACEMENT AND ADJUSTMENT
B513/B531 26 SM
3.9.3 JOGGER UNIT MOTOR

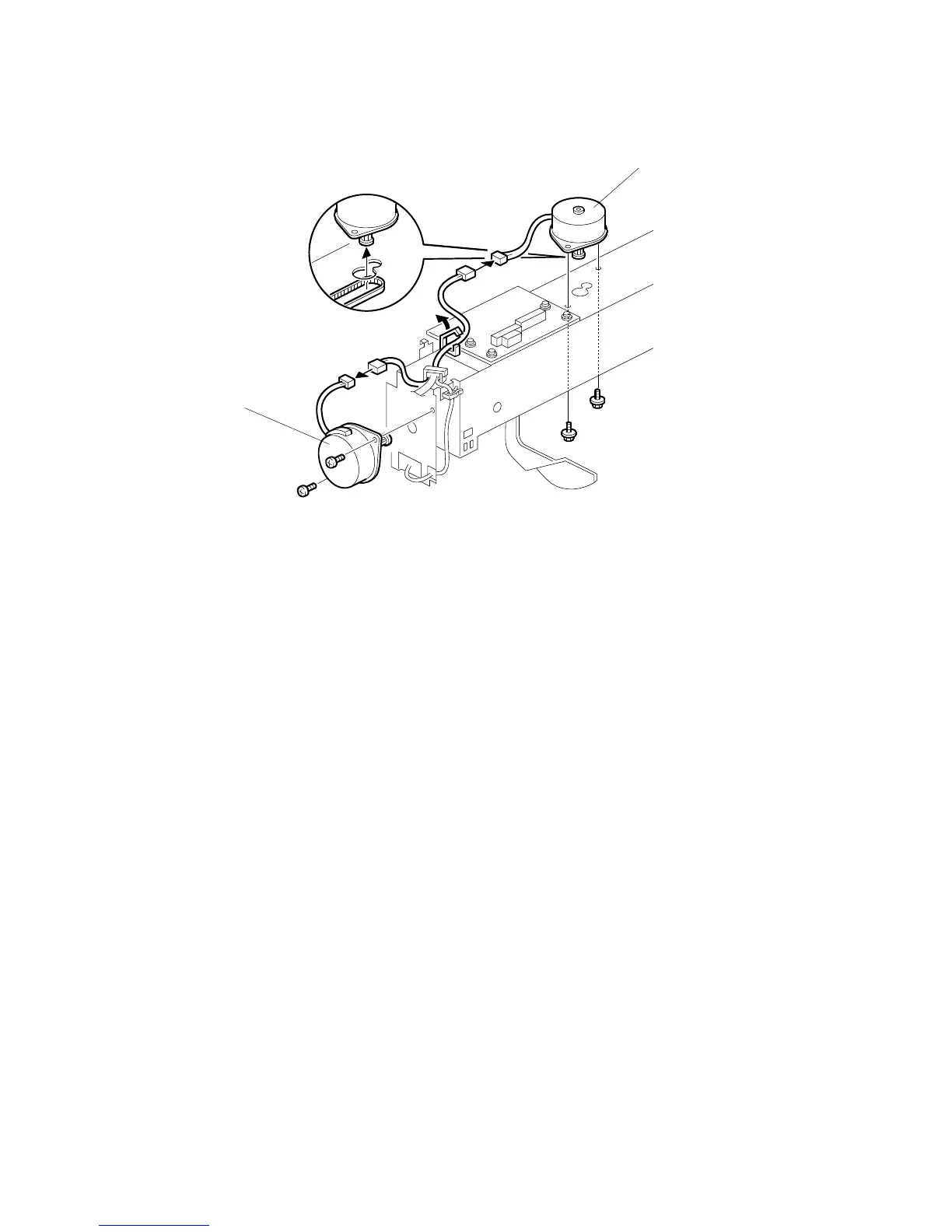

1. Remove the jogger unit from the finisher. ( 3.9.1)
2. Remove the shift jogger motor [A] ( x 2, x 1).
3. Remove the shift jogger lift motor [B] ( x 2, x 1).
B513R002.WMF
[A]
[B]
