EXTERNAL COVERS
SM 1 B704
Cover
Interposer
Tray
B704
1. REPLACEMENT AND ADJUSTMENT
1.1 EXTERNAL COVERS

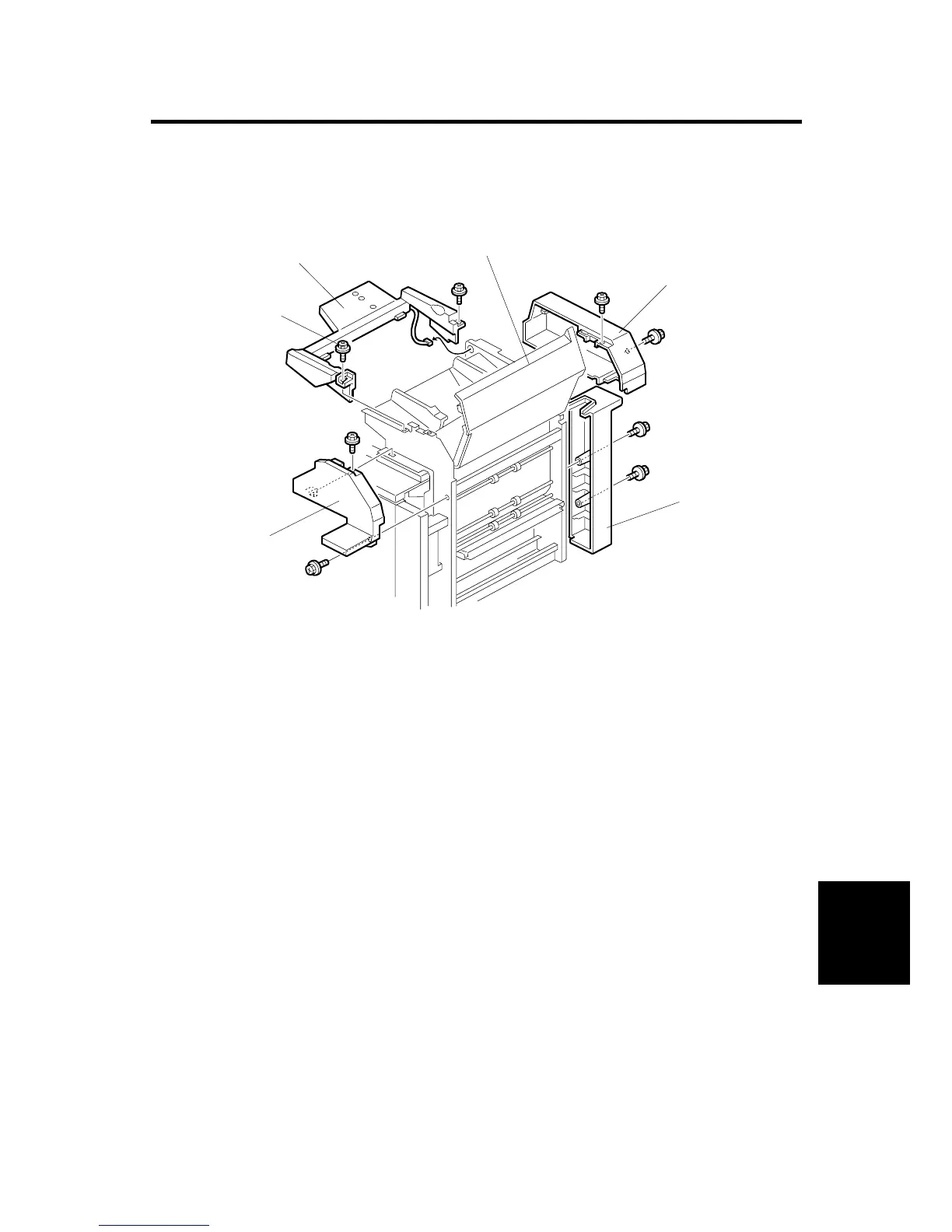

[A]: Open the feed cover.
[B]: Upper front cover ( x 2)
NOTE: To remove the upper front cover, screw [C] must be removed.
[D]: Rear upper cover ( x 2)
[E]: Slip sheet tray ( x 2, x 1)
[F]: Rear middle cover ( x 2)
B470R001.WMF
[A]
[B]
[D]
[E]
[F]
[C]
