Scanner
SM 4-15 D062/D063/D065/D066
Replacement
and
Adjustment

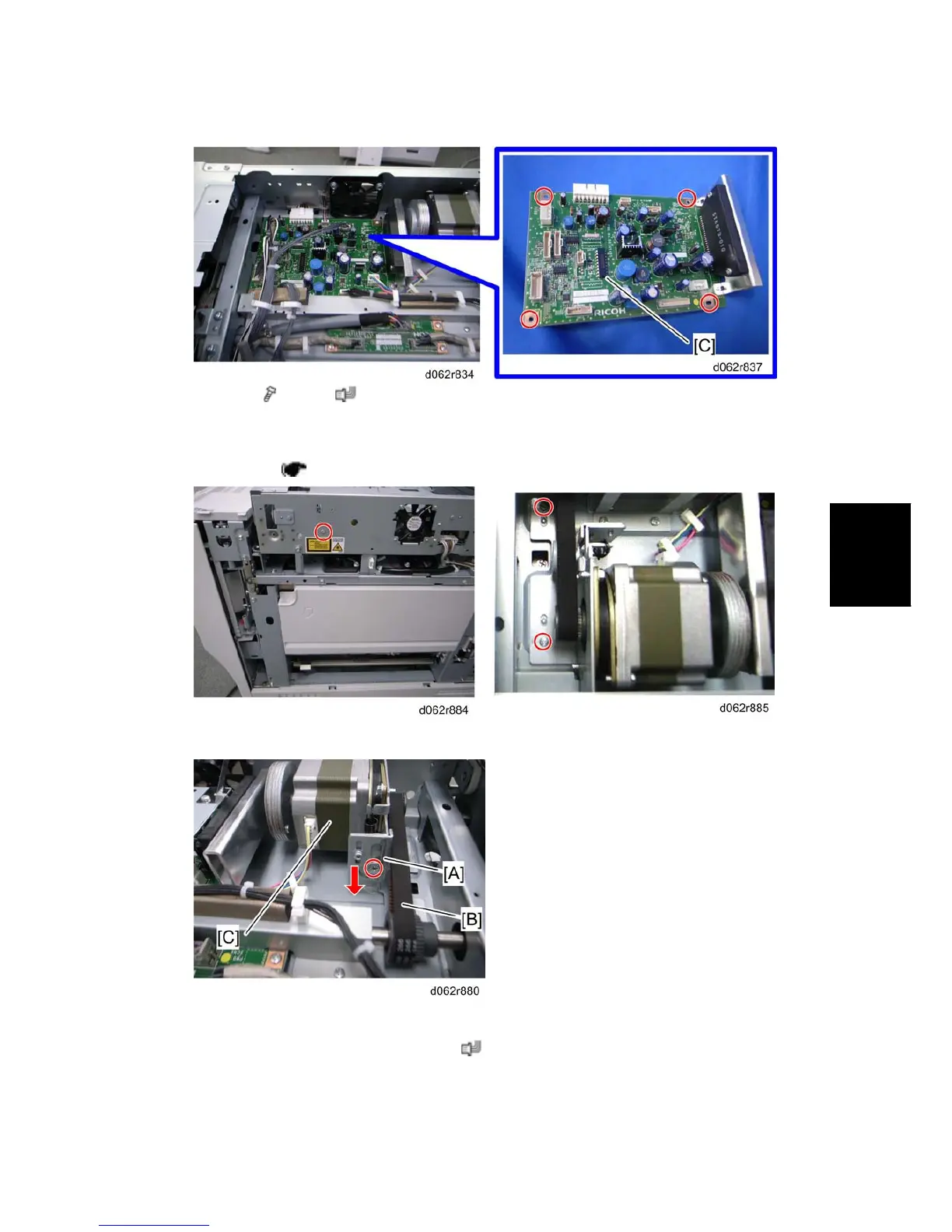

6. SIOB [C] ( x 4, all s)
4.4.7 SCANNER MOTOR
1. SIOB cover ( p.4-14)
2. Remove three screws.
3. Release a screw, move down the bracket [A], release the timing belt [B] and then
remove the scanner motor bracket [C] (
x 1).
