Ricoh Aficio MP 7001 SP Service Manual

Fusing Unit
D062/D063/D065/D066 4-68 SM

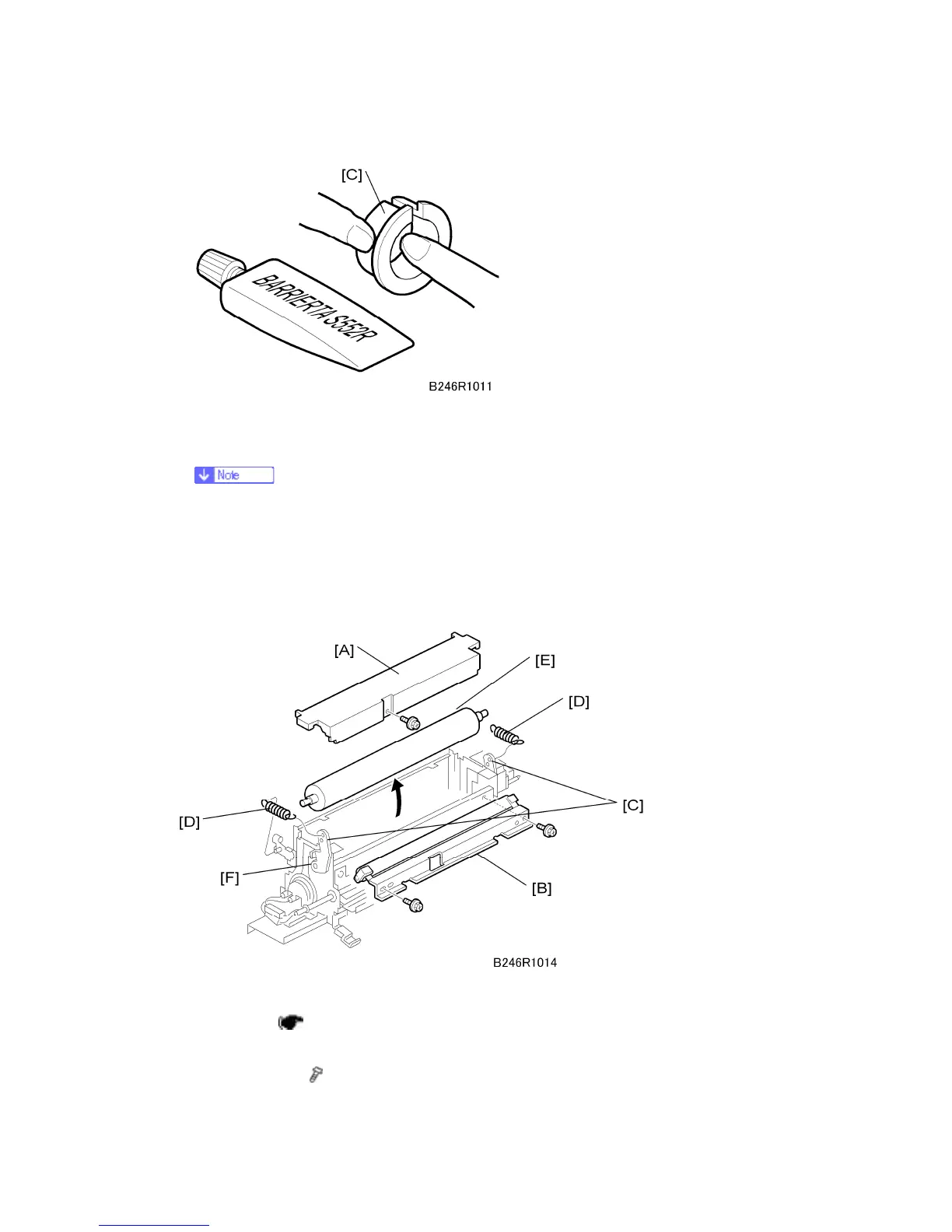

10. Lubricate the inner and outer surfaces [C] of the bushings with Barrierta S552R
grease.
 If the bushings are warm, allow them to cool before applying the Barrierta
grease. Applying the grease while the bushings are hot could generate gas.
4.9.7 PRESSURE ROLLER
Use this procedure if you need to remove only the pressure roller.
Remove:
 Fusing unit (
p.4-57)
1. Turn the fusing unit upside down.
2. Lower cover [A] (
x 1)
