TRAY MOTOR
SM 5 B473
Large
Capacity Tray
B473

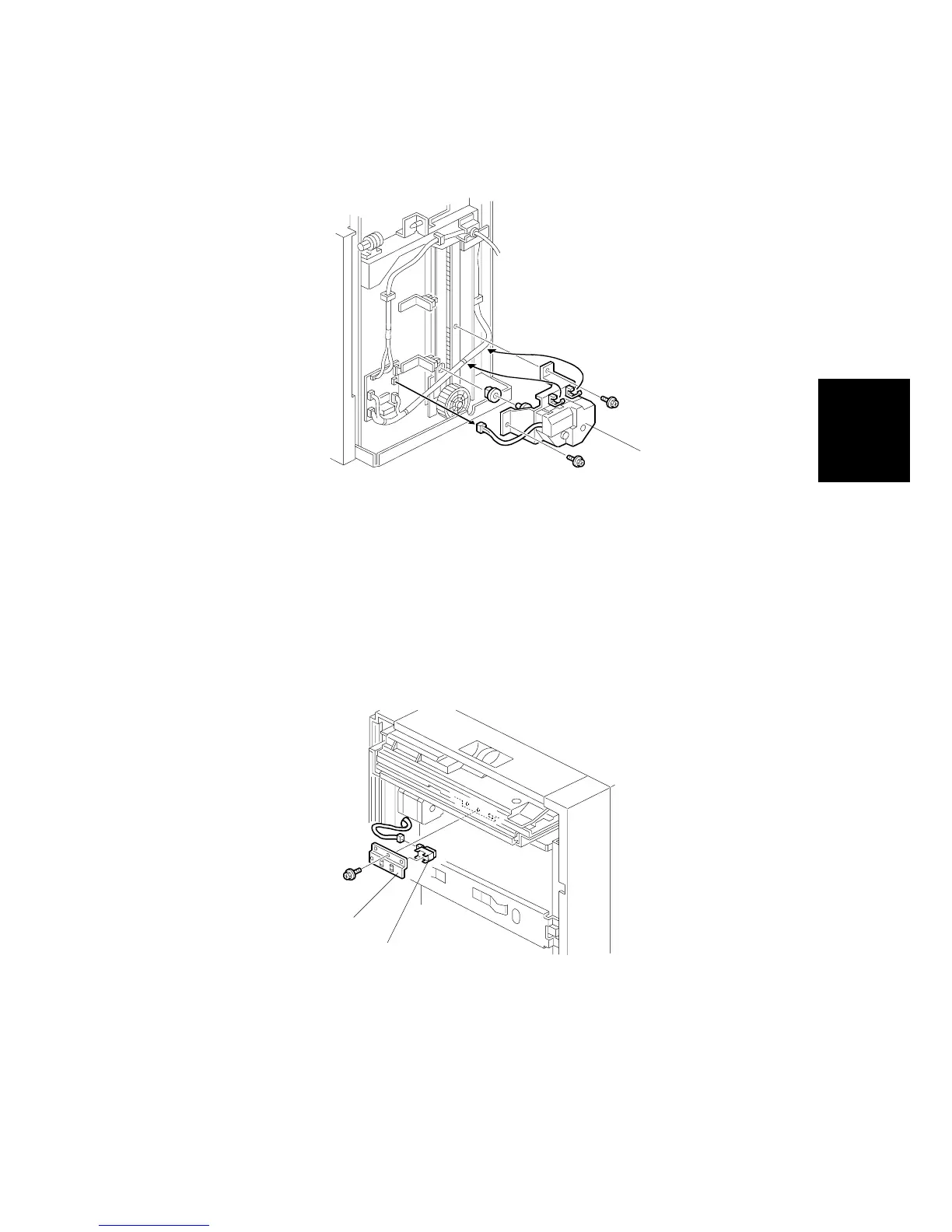

1.5 TRAY MOTOR
Rear cover ( 1.1)
[A]: Tray motor ( x 2, x 1)
1.6 PAPER STACK SENSOR
Disconnect the LCT from the machine
[A]: Sensor cover ( x 1)
[B]: Paper stack sensor ( x 1)
B473R007.WMF
B473R008.WMF
[A]
[B]
[A]
