S
tapler Unit
D373/D37
4 8
SM
1.3 STAPLER
UNIT
1.3.1 CORNER
STAPLER
1.
Open the front door
.
2.
Pull out the stapler unit.
3.

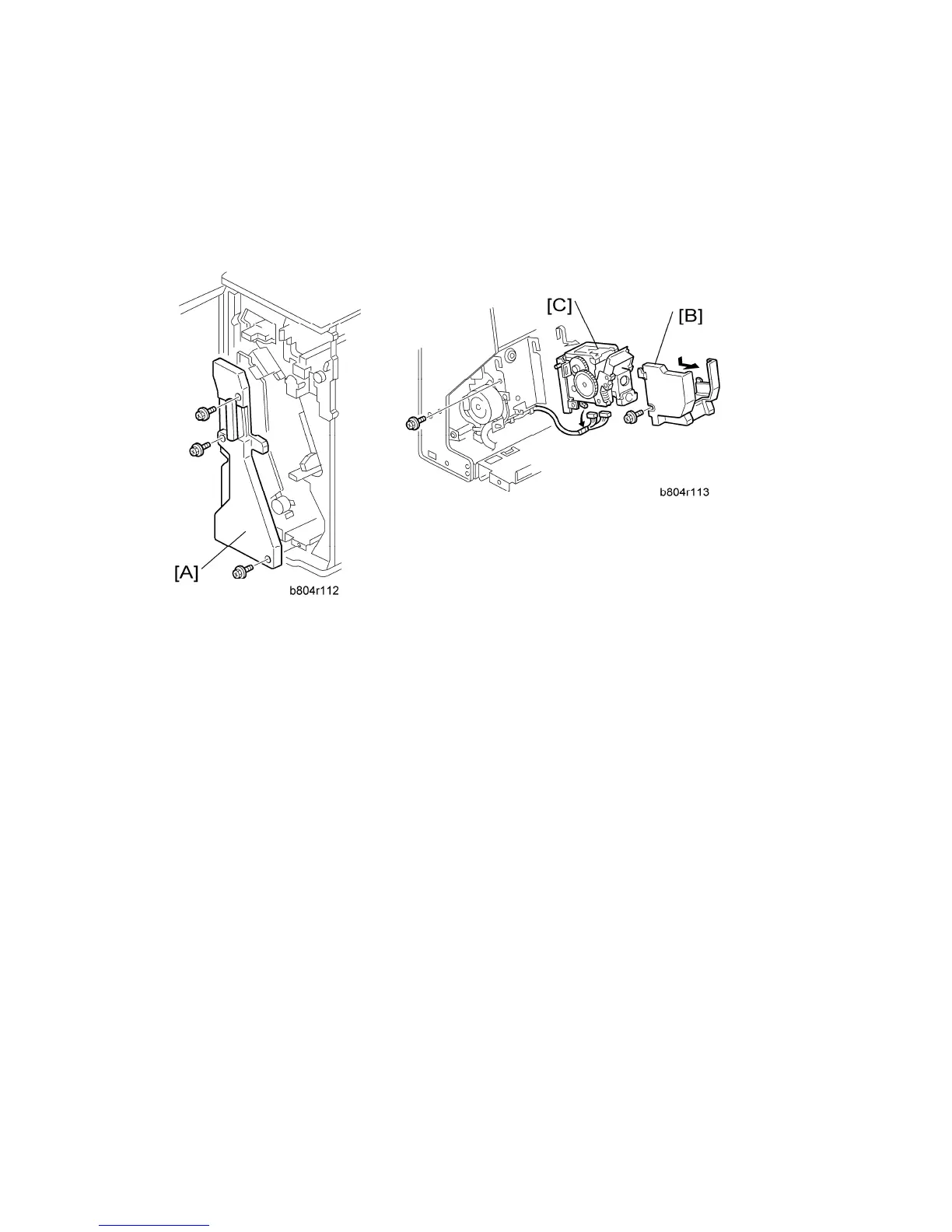

Inner cover [A] (
x3)
4.
S
tapler unit holder [B] (
x1)
5.
Corner stapler [C] (M20) (
x1)
938
940
