ADF
D062/D063/D065/D066 4-120 SM

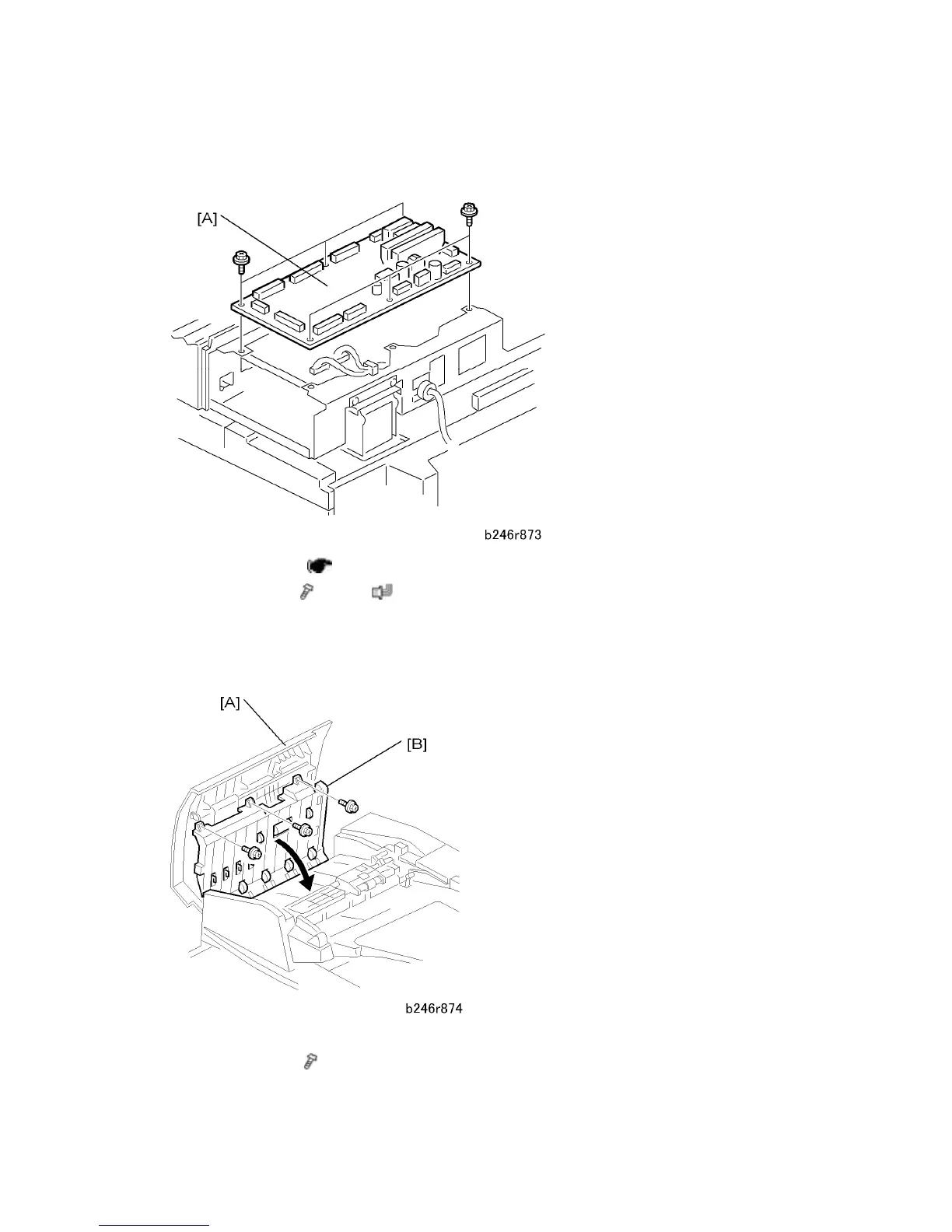

4.13.6 ADF CONTROL BOARD
1. ADF rear cover (
p.4-115)
2. ADF board [A] (
x 4, all s)
4.13.7 ORIGINAL WIDTH, INTERVAL, SEPARATION AND
SKEW CORRECTION SENSORS
1. Open the feed cover [A].
2. Guide plate [B] (
x 3)
