3. Proof tray exit sensor [B] ( x1)
1.2.4 UPPER TRAY HEIGHT SENSORS 1, 2
1. Small upper cover, upper cover (
1.1.1 "Exterior Cover")

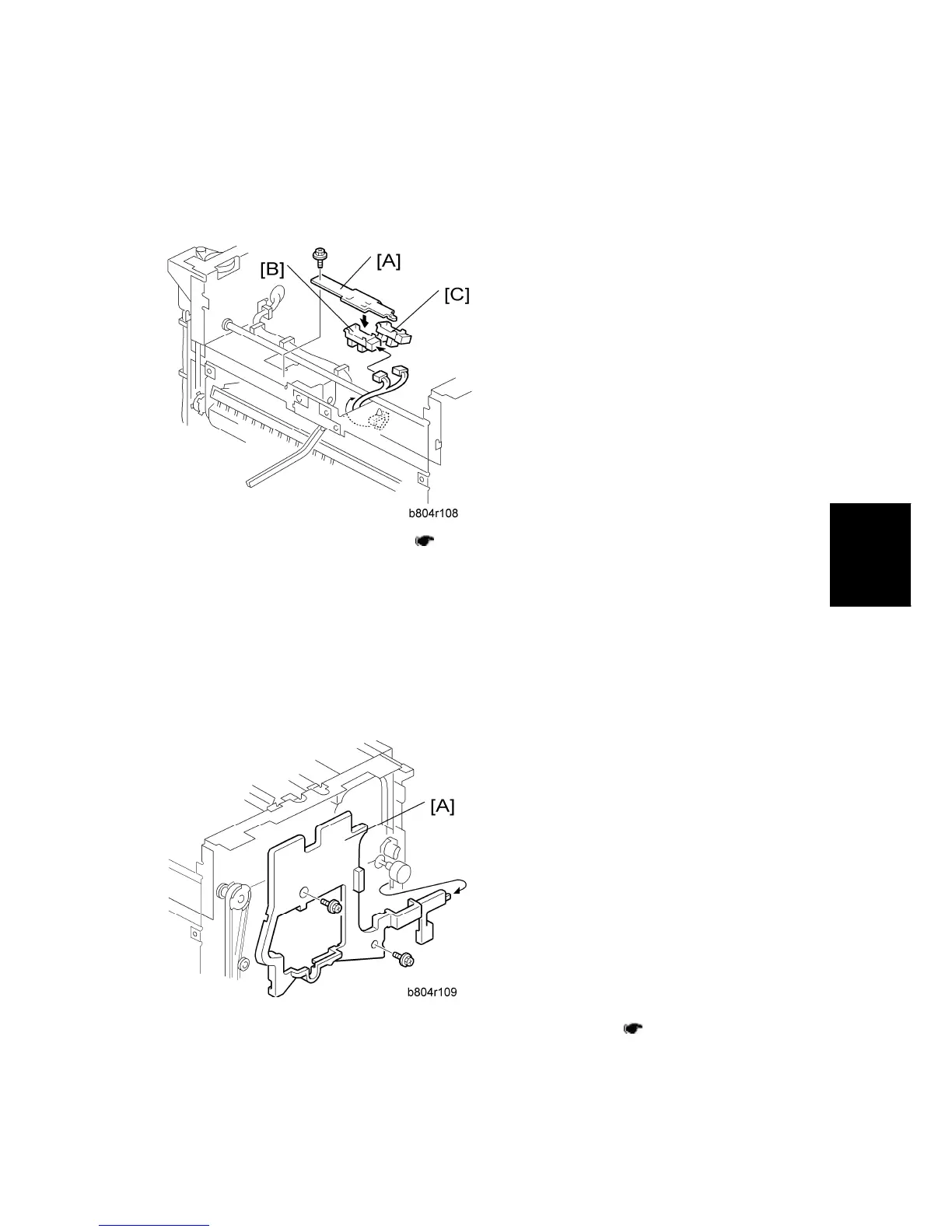

2. Upper tray paper height sensor bracket [A] ( x1)
3. Upper tray paper height sensor [B] – staple mode (S08) ( x1)
4. Upper tray paper height sensor [C] – non-staple mode (S09) ( x1)
1.2.5 EXIT GUIDE PLATE, UPPER TRAY EXIT SENSOR
1. Rear cover, Upper covers, Front door, Cover, Paper exit cover (
1.1.1 "Exterior
Cover")
2. Inner cover [A] ( x2)
