REPLACEMENT AND ADJUSTMENT
B513/B531 18 SM
3.6 STAPLER

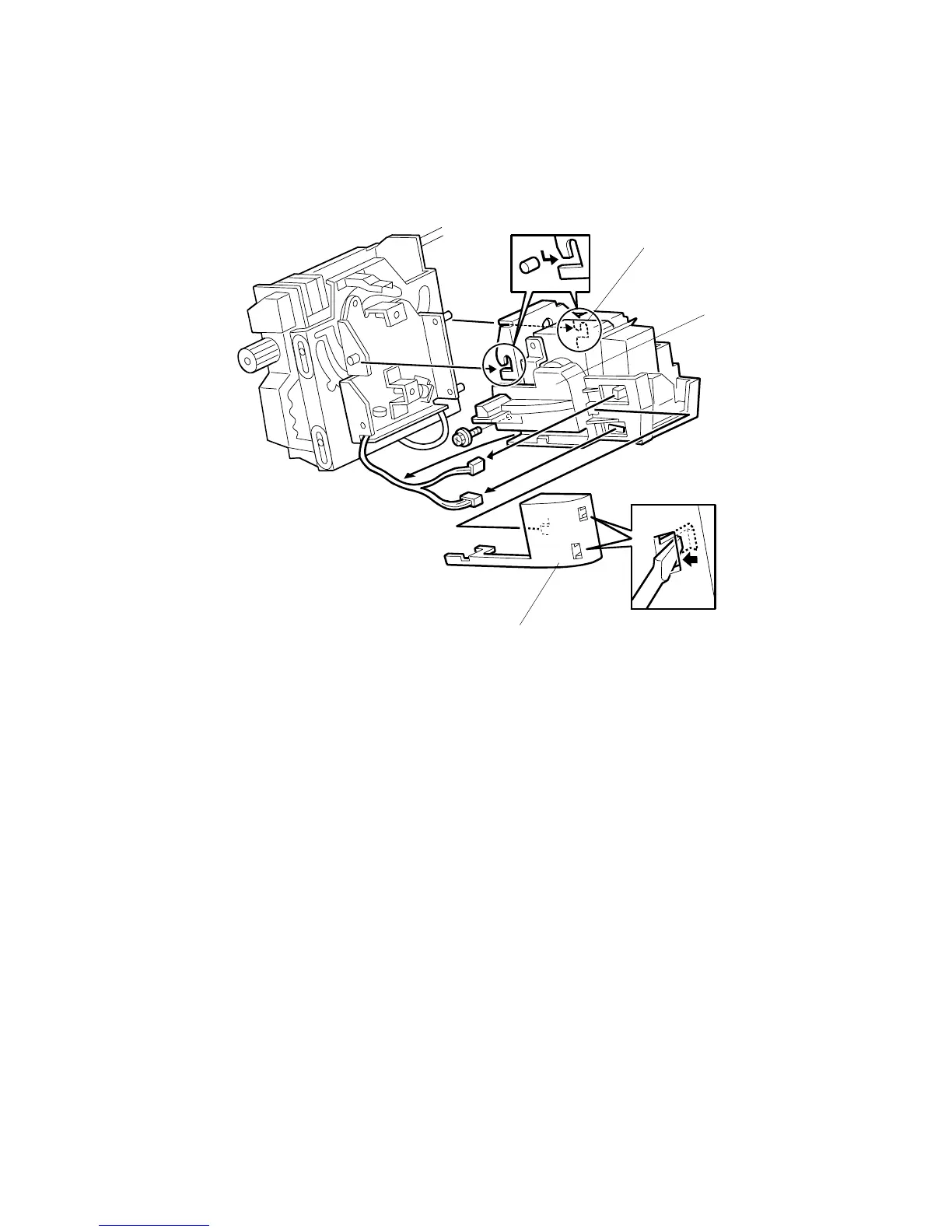

1. Open the front door and pull out the staple tray.
2. Remove the stapler unit harness cover [A].
3. Remove the stapler cover [B] ( x 1, x 2).
4. Lift the stapler off of the pegs [C].
B478R518.WMF
[B]
[A]
[C]
