Ricoh Aficio MP 7001 SP Service Manual

Main Unit
D373/D374 6 SM

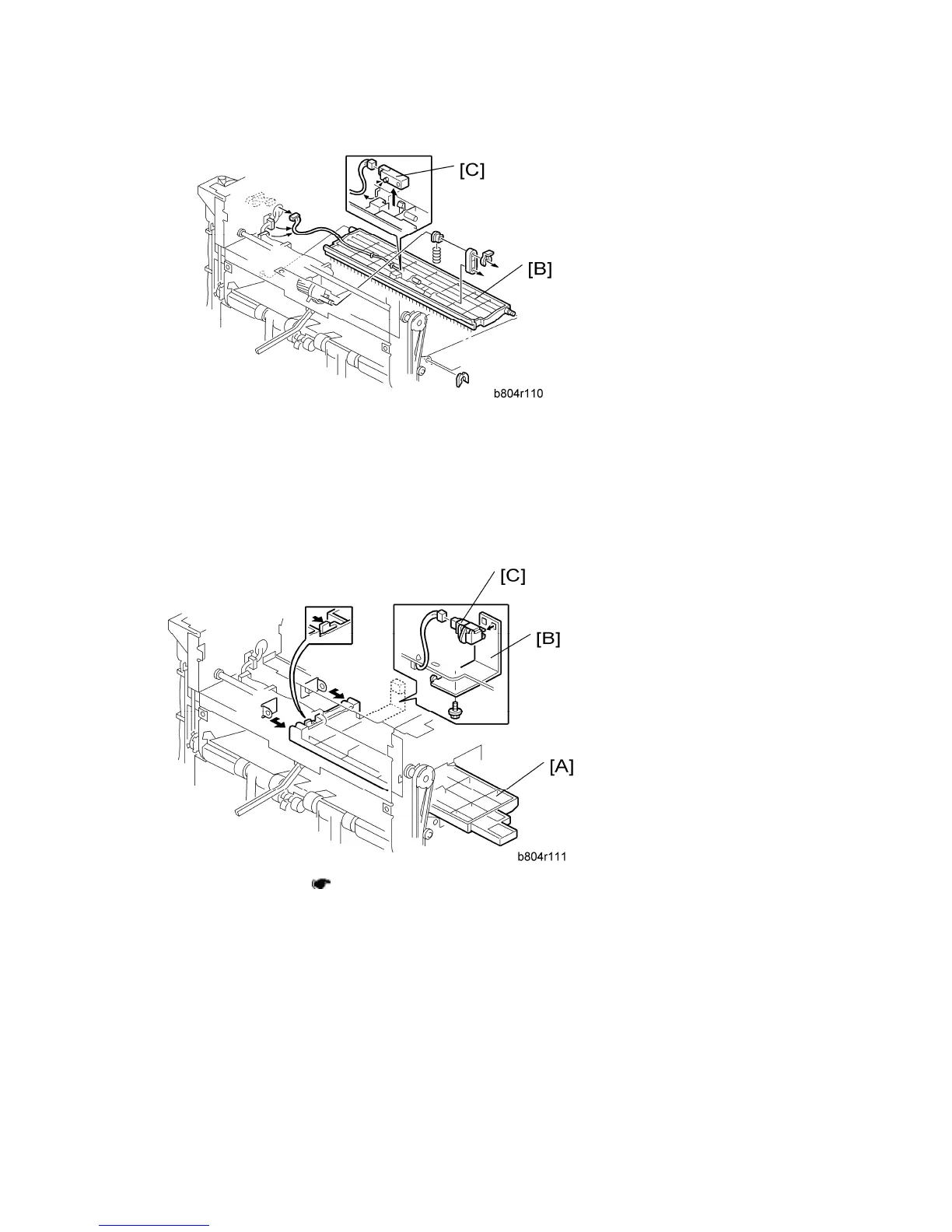

3. Exit guide plate [B] ( x1, Link and spring,  x1,  x1)
4. Upper tray exit sensor [C] (S6) ( x1)
1.2.6 PROOF TRAY FULL SENSOR
1. Exit guide plate. (
1.2.5 "Exit Guide Plate, Upper Tray Exit Sensor")
2. Guide plate [A] (hook x 2)
3. Sensor bracket [B] ( x1)
4. Proof tray full sensor [C] (S11) ( x1)

Ricoh Aficio MP 7001 SP Specifications

General

Brand	Ricoh
Model	Aficio MP 7001 SP
Category	All in One Printer
Language	English
