ADF
SM 4-1
19
D062/D063/D065/D066
Repla
cement
and
Adjustment
3.

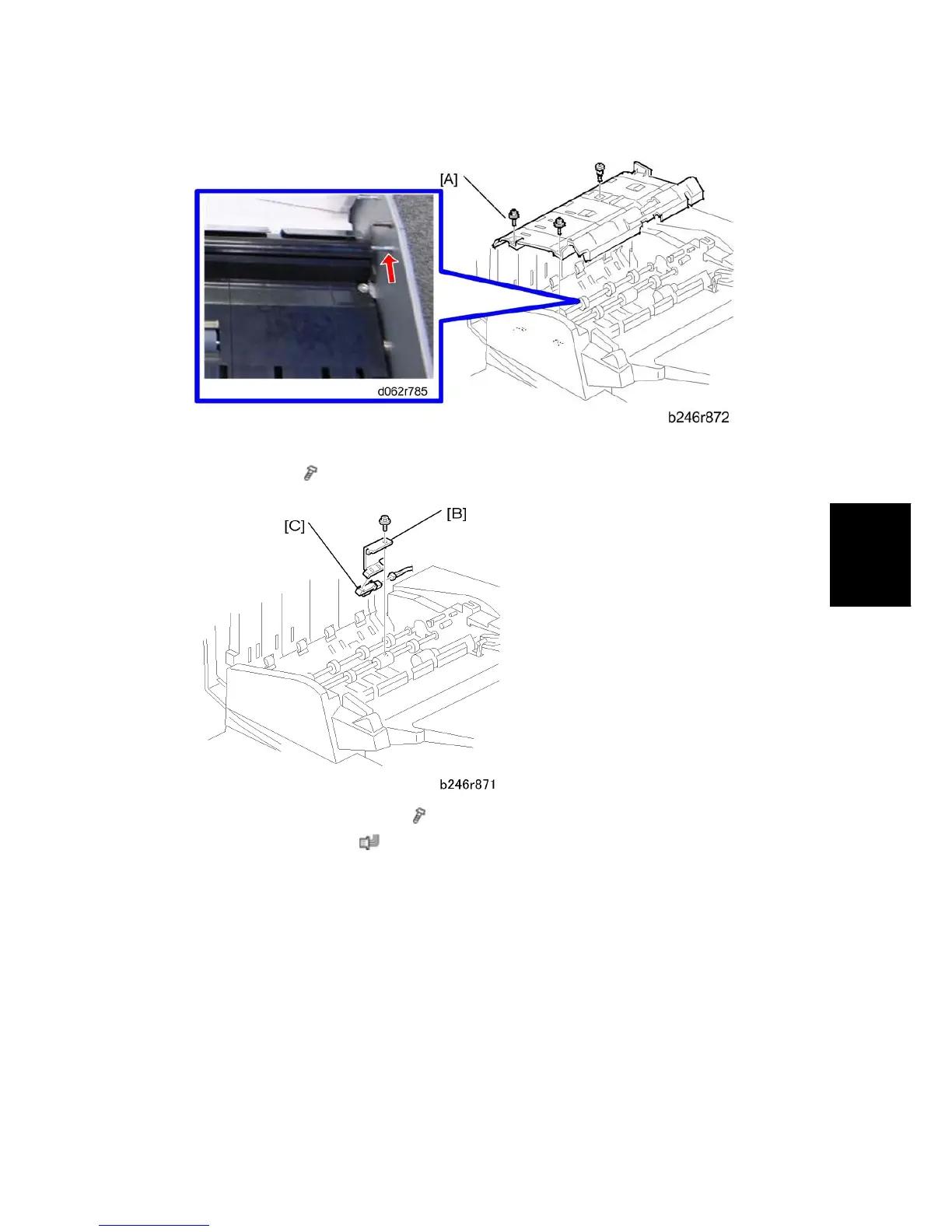

Remove the screw indicated above by a red arrow
.
4.
Guide plate [A] (
x
3)
5.
Registration sensor bracket [B] (
x
1)
6.
Registration sensor [C] (
x
1)
