Replacement and
Adjustment
D454 30
SM
2.

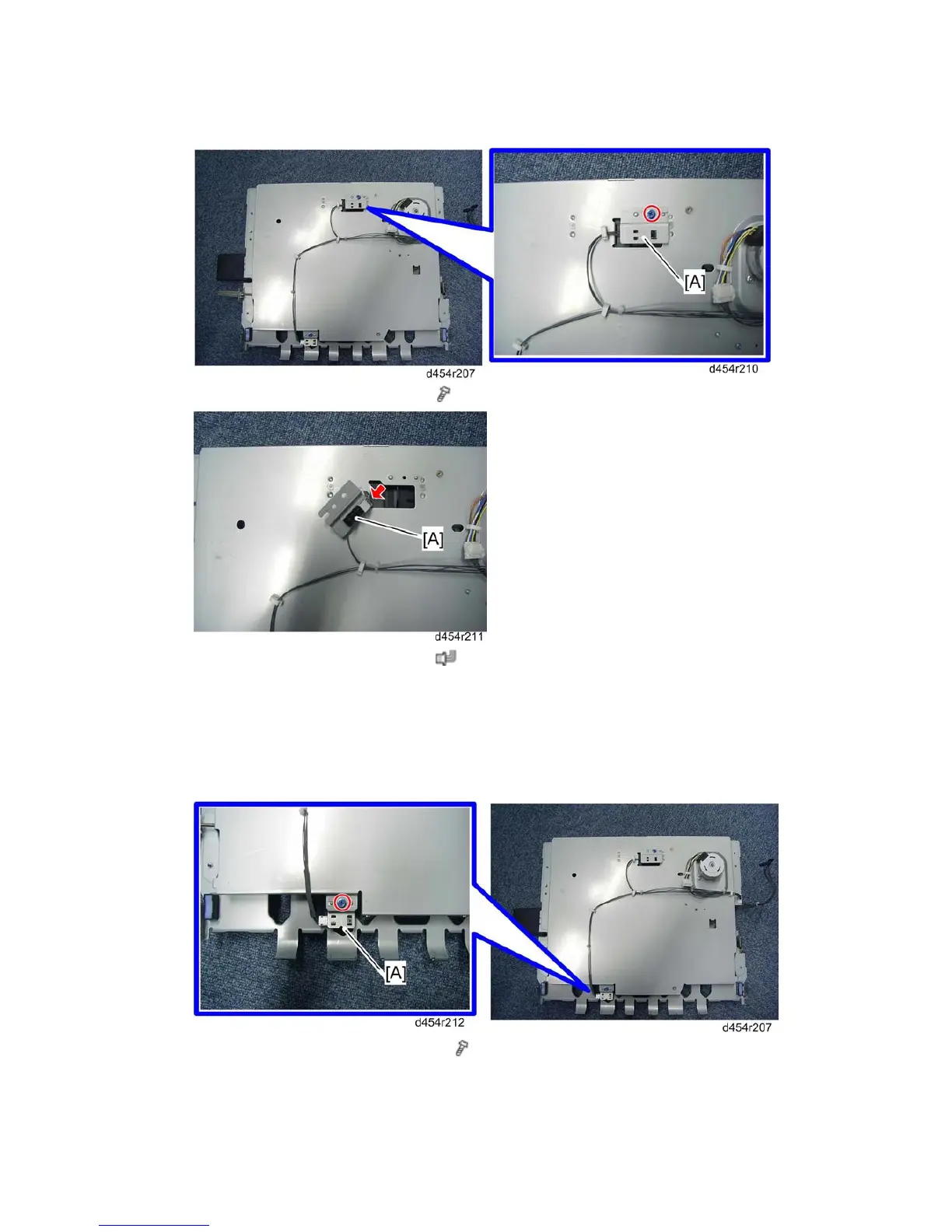

2nd stopper HP sensor bracket [A] (
x
1)
3.
2nd stopper HP sensor [A] (hooks,
x
1)
1.4.4
2ND STOPPER PAPER SENSOR
1.
2nd stopper unit (
p.27)
2.
2nd stopper paper sensor bracket [A] (
x
1)
1248
1250
