Replacement and
Adjustment
D454 44
SM
2.

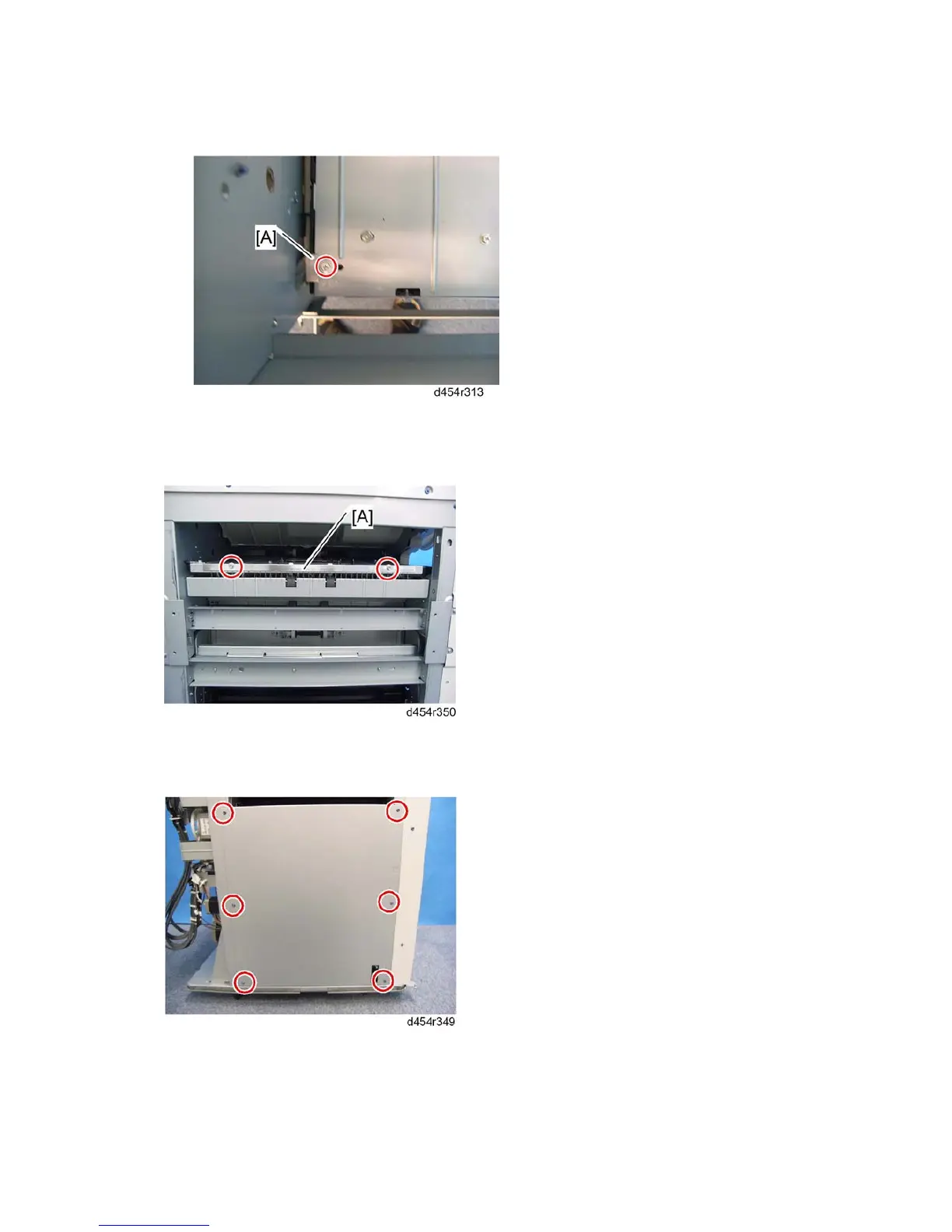

Discharge brush 2 [A] (
x 1)
1.6.8
DISCHARGE BRUSH 3
1.
Discharge brush 3 [A] (
x 2)
1.6.9 PSU
1.
Left lower bracket (
x 6)
1262
1264
