Ricoh Aficio MP 7001 SP Service Manual

Electrical Components: Main 2
SM 55 D454
Multi-Folding
Unit FD5000
D454

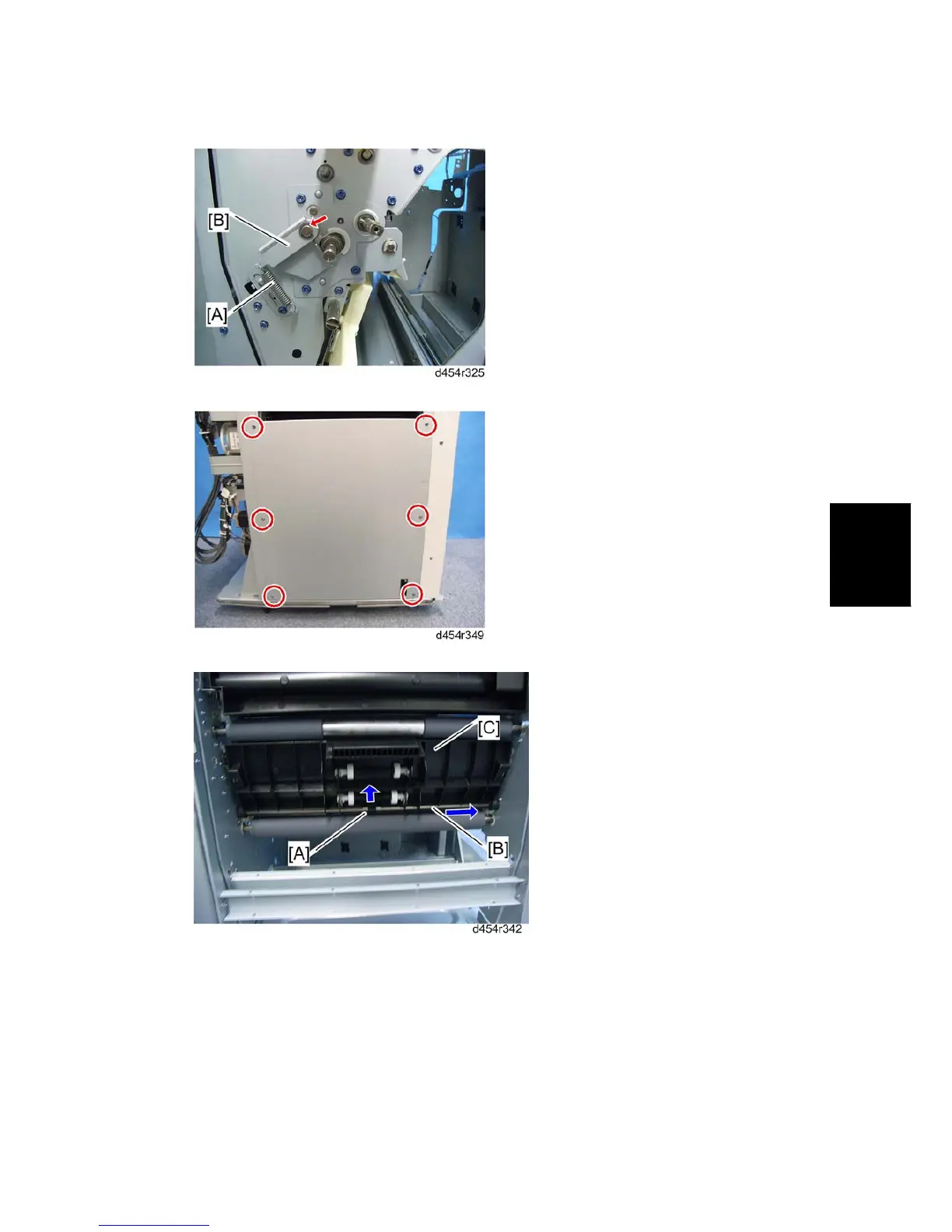

8. Remove the spring [A] and the tension bracket [B] ( x 1).
9. Left lower bracket ( x 6)
10. Lift up the hook [A] to release the guide plate shaft [B].
11. Move the guide plate shaft [B] to the front side (arrow direction), and then remove the
guide plate [C].
