Ricoh Aficio MP 7001 SP Service Manual

Paper Folding
SM 107 D454
Multi-Folding
Unit FD5000
D454

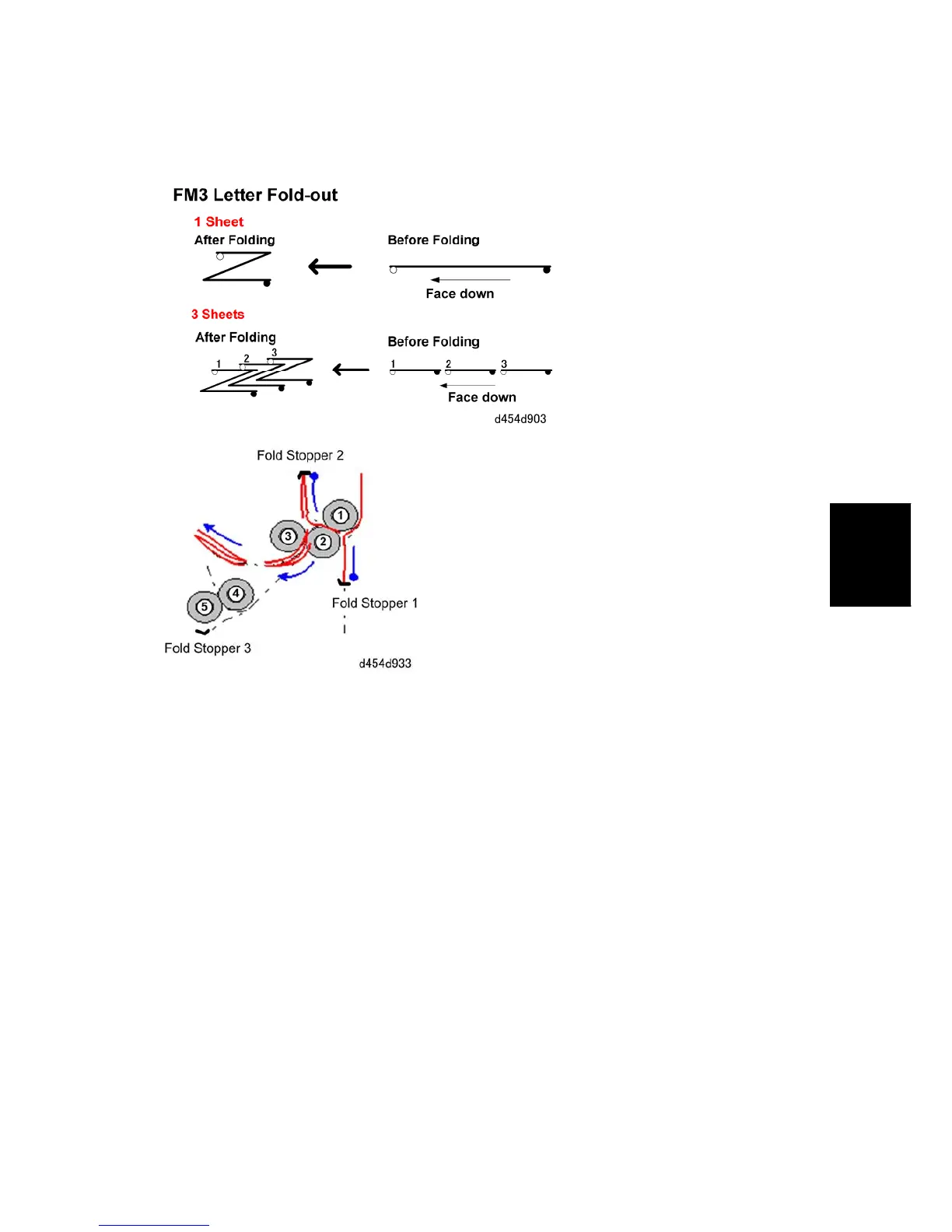

FM3 Letter Fold-out
In Fold Method 3 (FM3):
 The leading edge of the paper is stopped by Fold Stopper 1.
 The paper flexes toward the nip of fold rollers { and | which performs the first fold.
 Fold Stopper 2 stops the paper and flexes it into the nip of fold rollers | and }.
 Fold rollers | and } perform the second crease and feed the folded paper in exit path.
 Fold Stoppers 3 is not used.
