Drum Unit

D062/D063/D065/D066 4-26 SM

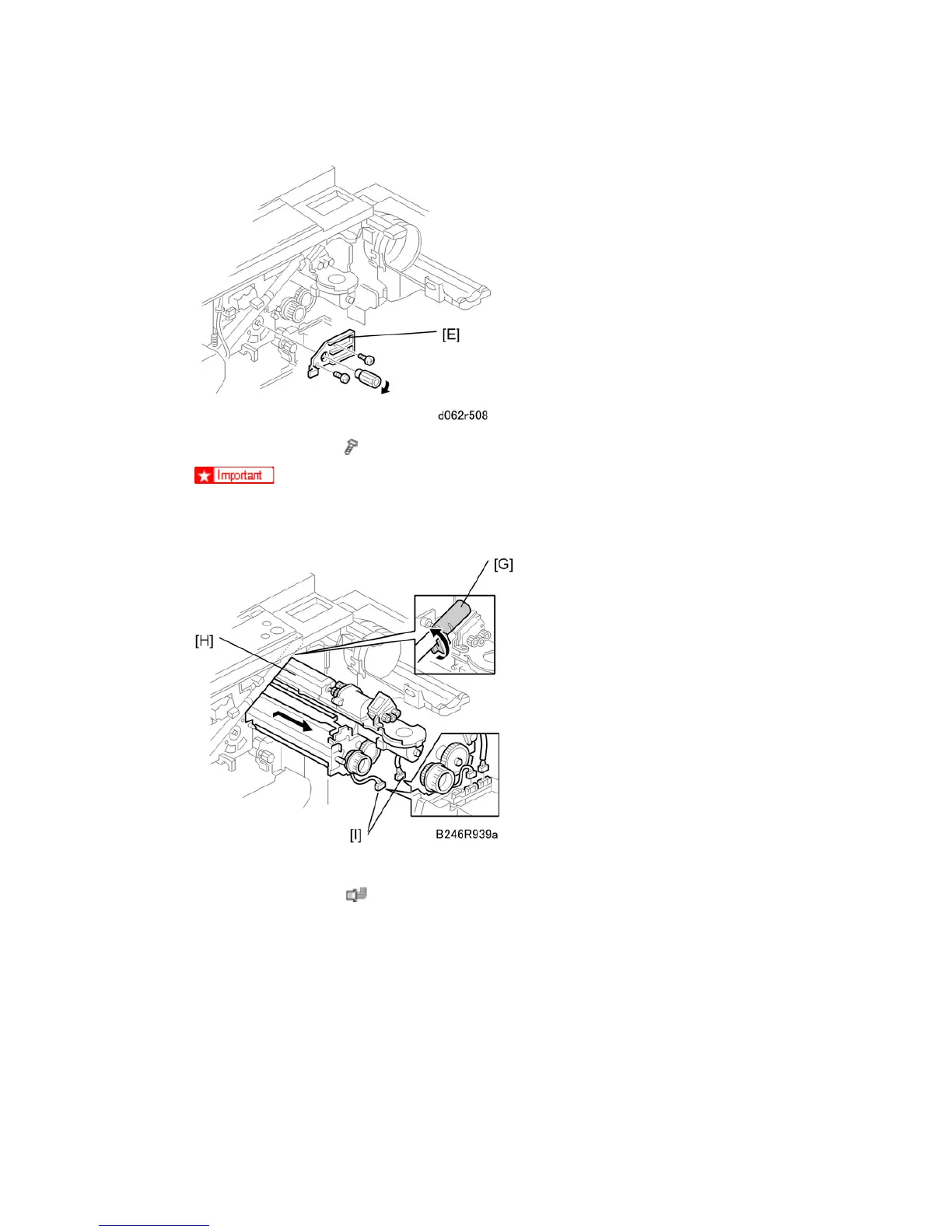

6. Face plate (knob x 1,

x 2) [E]

 After re-installation, the tab [F] in the first illustration should be behind the stay

and its pin below should be in the open track below.

7. Close the supply pipe shutter [G].

8. Development unit [H] (

x 2 [I])

 Allow the unit to slip to the right, then slowly pull it out of the machine.

 If the LCT is installed, you may need to disconnect it so the front door can open far

enough to allow removal of the development unit.
