Paper Feed
SM 4-83 D062/D063/D065/D066
Replacement
and
Adjustment

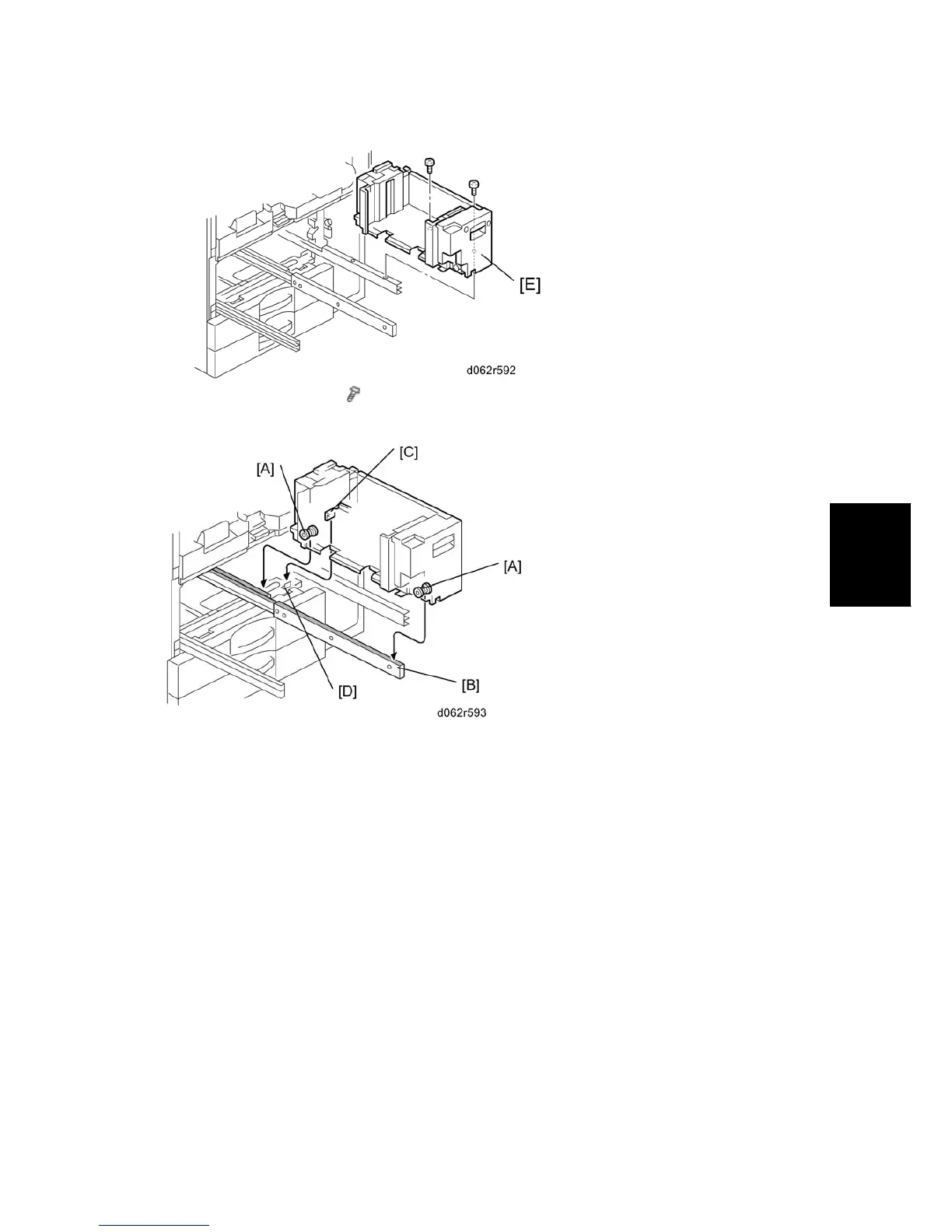

4. Right tandem tray [E] (
x 2).
Reinstallation
When re-installing the right tandem tray, make sure that the wheels [A] ride on the slide
rail [B].
When re-installing the right tandem tray, make sure that the tandem tray stopper [C] is
set behind the stopper [D] on the frame.
