JUNCTION GATE MECHANISM
D368 6 SM
2. DETAILED DESCRIPTION
2.1 JUNCTION GATE MECHANISM
The junction gate [B] directs any paper reaching the bridge unit to either the upper
tray (on top of the bridge unit) or to the finisher, depending on which has been
selected.
If the junction gate solenoid [A] has been activated, the junction gate [B] points
downward and directs the paper to the upper tray [D] (dotted line path in
illustration). When the solenoid is off, the junction gate points upward and the
paper is fed out to the finisher [C] by the transport and exit rollers (solid line).

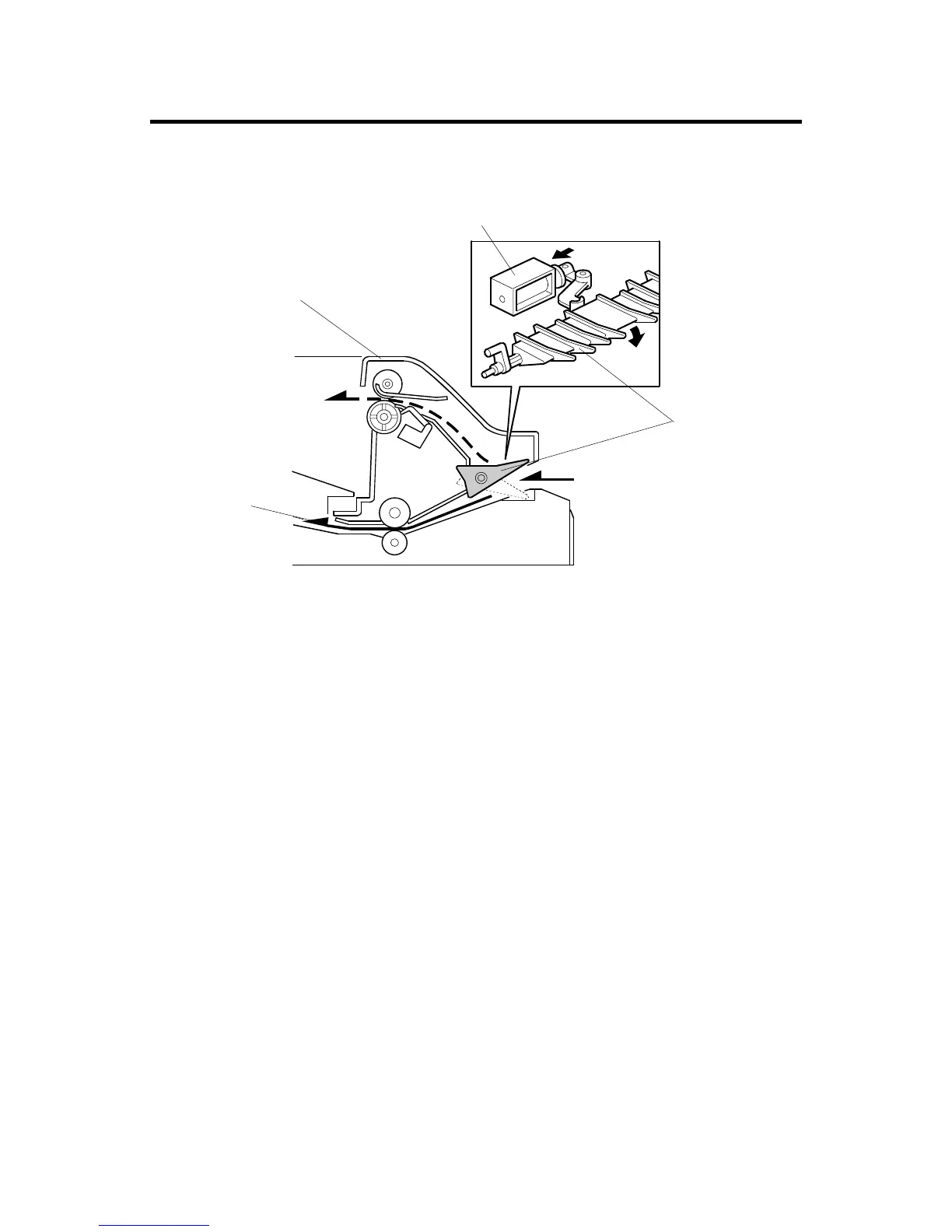

B417D104.WMF
