REVERSE ROLLER AND PICK-UP ROLLER RELEASE
B391 6 SM
2.2 REVERSE ROLLER AND PICK-UP ROLLER RELEASE
To prevent the paper from being torn when pulling out the paper feed tray, the
reverse and pickup rollers are set so that they release automatically.

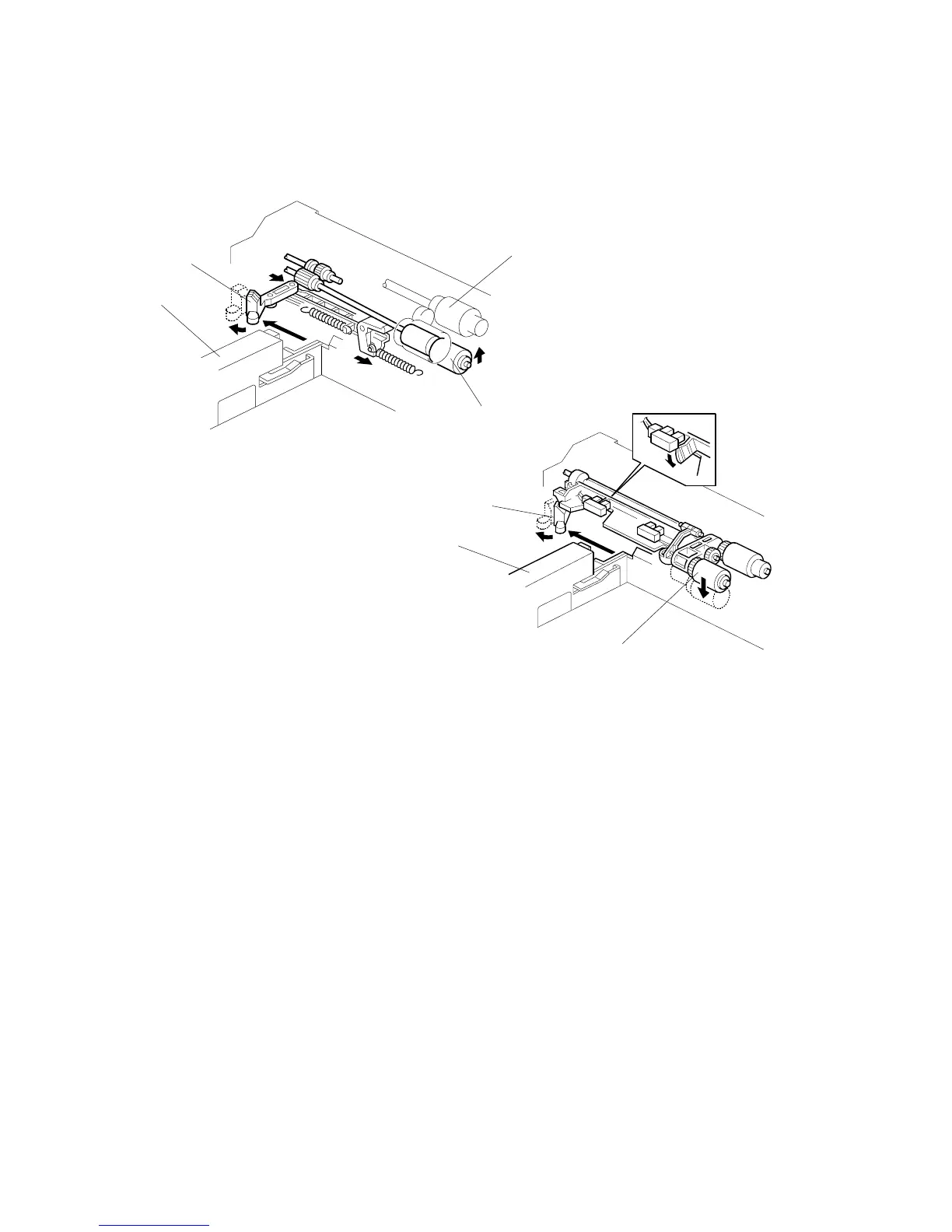

When the paper tray [A] is not inside the machine, the reverse roller [B] is away
from the paper feed roller [C] and the pick-up roller [D] stays in the upper position.
When the paper tray is set into the machine, it pushes the release lever [E]. This
causes the pick-up roller [D] to go down into contact with the top sheet of paper
and the reverse roller [B] to move up and contact the paper feed roller.
B391D108.WMF
B391D107.WMF
[E]
[D]
[A]
[A]
[C]
[B]
[E]
