Paper Feed
SM 4-50 D017/D018/D019/D020/D084/D085
4.8.7 PAPER FEED CLUTCHES

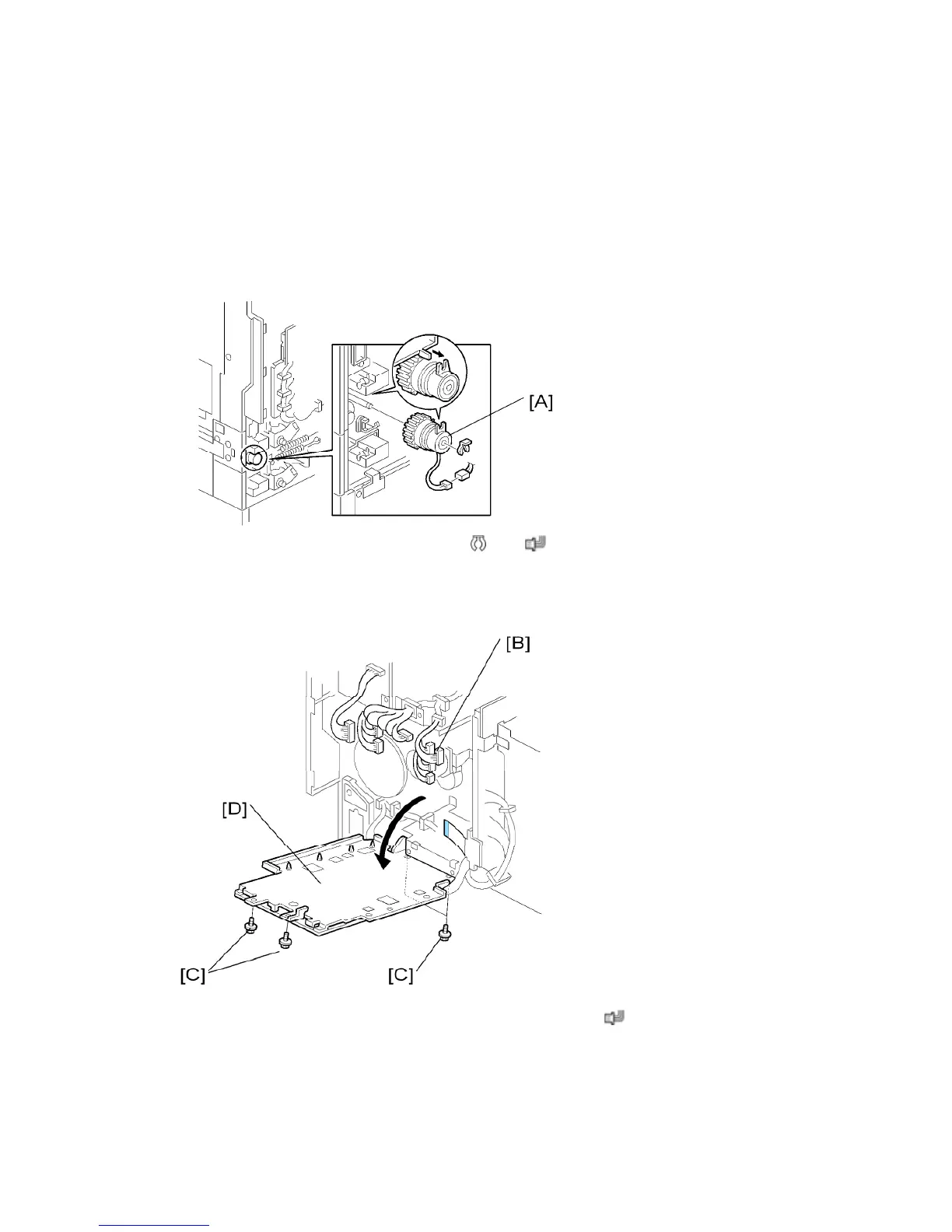

Lower Paper Feed Clutch
1. Remove the rear cover.
2. Remove the lower rear cover.
3. Replace the lower paper feed clutch [A] (
x 1, x 1).
Upper Paper Feed Clutch
1. Disconnect the connectors [B] for the BCU board as shown (
x15).
2. Remove 4 screws [C] securing the BCU board bracket then swing down the BCU board
bracket [D].
