Ricoh D017 - Duplex Operation

Overview
SM 15 D369
Duplex Unit
AD3000
D369
2.2.2 DUPLEX OPERATION
Up to A4/LT (8
1
/
2
" x 11") LEF
There are three sheets of paper in the paper feed path at the same time. The interleave
method is used.

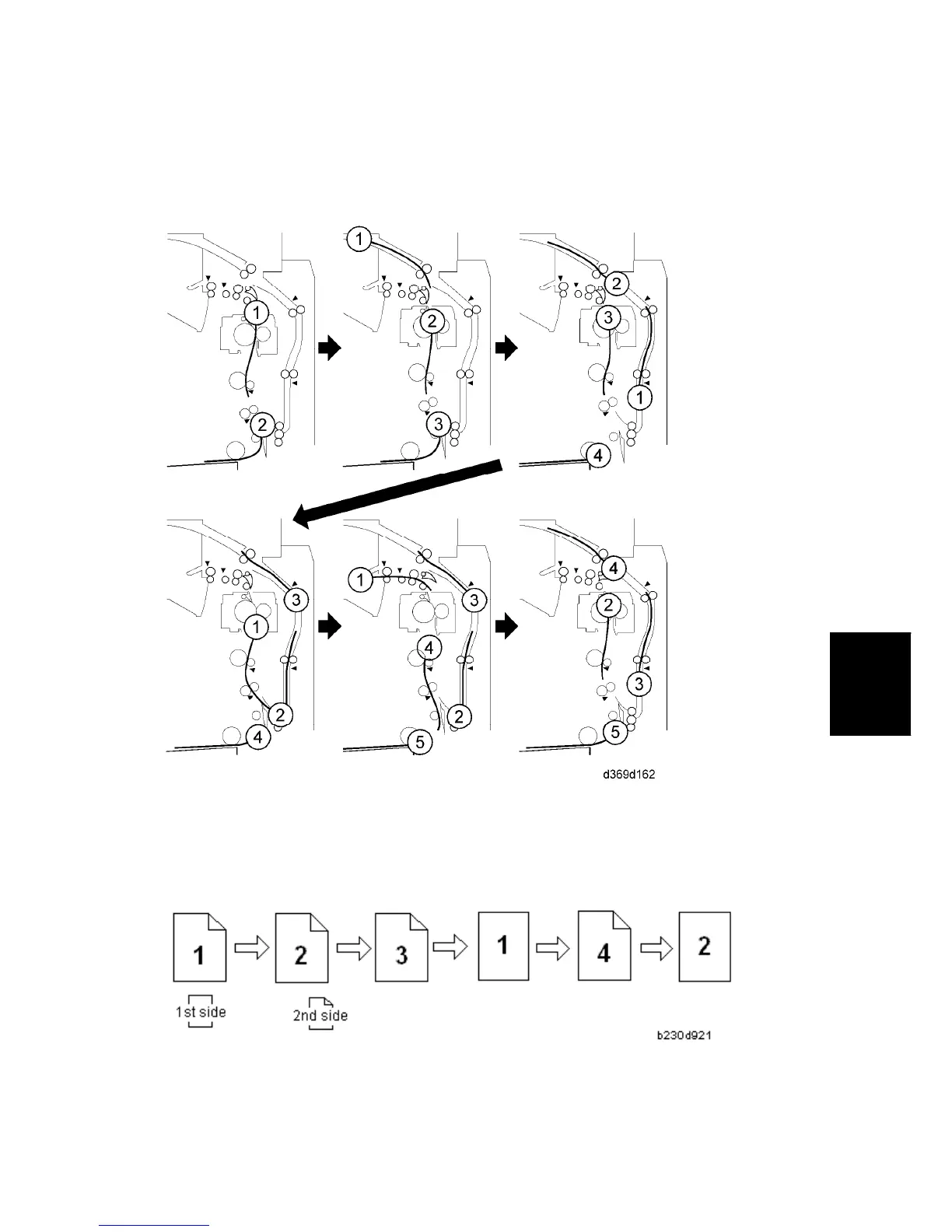

The drawing above shows the paper movement with the interleave method for three sheets
of paper. The printing is done as follows:
